AFT, as a Concrete Stud Manufacturers in India, produces heavy-duty fasteners built for lasting structural strength. A concrete stud is an anchor bolt designed to fasten fixtures to concrete. Once installed, its threaded portion allows nuts and washers to hold items in place. Popular choices include wedge anchors, which provide reliable grip and stability. Every piece is crafted to match different Concrete stud types, so clients can choose what best fits their project needs.

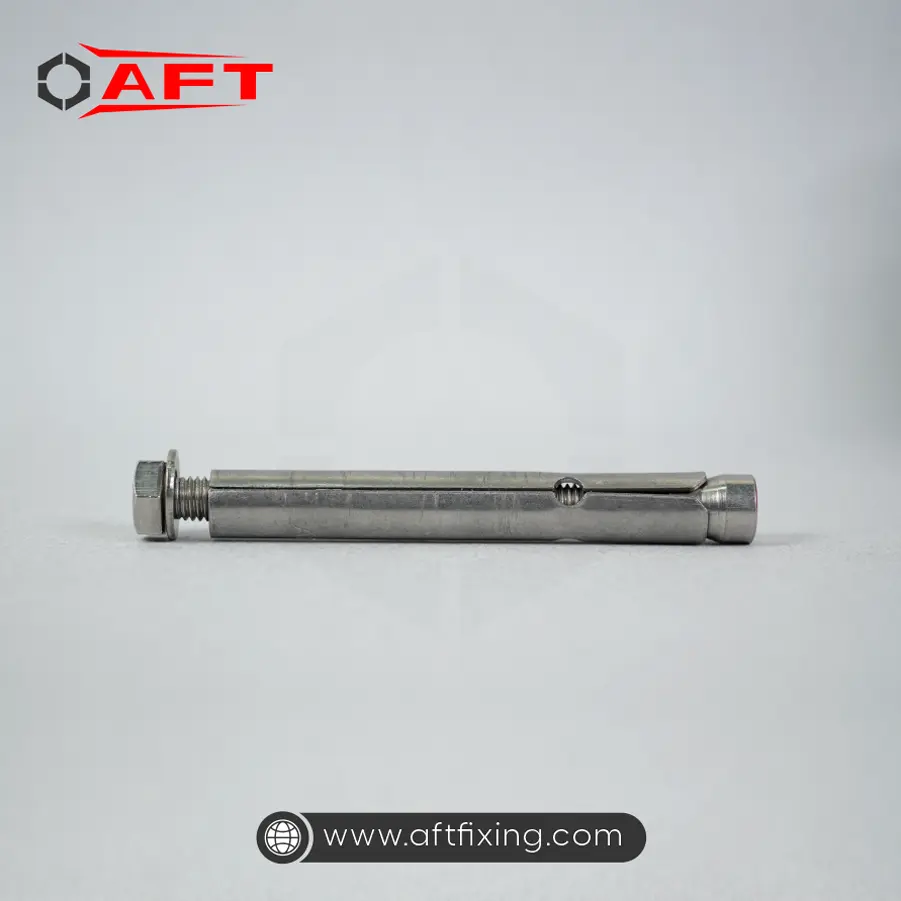

We create anchors that meet both residential and industrial requirements. For example, railings, staircases, and façade systems across the city often rely on our wedge and sleeve anchors for safety. You might notice that finishes like zinc plating or stainless steel extend service life. In addition, we also provide specialized Headed Concrete Anchor studs and Heavy-duty concrete anchors for more demanding jobs.
Benefits and Applications
- Built with strength – resists both shear and tensile loads for solid anchoring.
- Several types of Concrete bolts for light and heavy-duty needs.
- Corrosion-resistant finishes for outdoor or exposed environments.
- Adjustable design that allows fast and secure installation for all types of fixtures.
- Options include wedge, sleeve, chemical, and Headed Stud anchor types.
Concrete Stud Suppliers & Dealers in India – Consistent Stock and Quality
Being a Concrete Stud Suppliers in India means more than moving fasteners from warehouse to site. It’s about ensuring that construction teams always have access to reliable Concrete Anchor Fasteners. Our supply includes wedge anchors for strong loads, sleeve anchors for versatility, and chemical anchors for critical structural work. It often helps when builders know they’ll receive exactly the size and type they need.
AFT supports contractors by maintaining a steady stock of anchors ready for dispatch. Clients often rely on us for competitive Concrete stud price, especially when working on large projects where costs must stay predictable. For instance, mounting heavy equipment or securing structural supports is easier when supply is reliable and quality is never in doubt.
A Concrete Stud Dealers in India plays a key role in making fasteners accessible at the local level. Our dealers stock wedge anchors, sleeve anchors, and chemical anchors, allowing customers to see options firsthand. Sometimes, it helps when you can compare finishes or check a Concrete anchor Bolt before purchase, ensuring the right pick for the job.
It ensures buyers get the guidance they need. From railing installations to bridge supports, local contractors trust our dealers for advice and quick service. They also appreciate having access to Heavy duty concrete anchors for industrial jobs, while homeowners often pick lighter anchors for shelves and cabinets. This mix of availability and advice makes buying easier.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Why Choose Our Supply
- Full variety of Concrete bolt types available for different structural needs.
- Fair and transparent Concrete stud price options for bulk and small orders.
- Every batch tested for expansion performance and load capacity.
- Timely deliveries across residential, commercial, and infrastructure projects.
- Reliable supply of Concrete anchor Bolt models for high-demand projects.
Concrete Stud Wholesalers in India – Bulk Orders and Value
AFT, as a Concrete Stud Wholesalers in India, delivers consistent bulk orders to distributors, contractors, and industrial buyers. Our wholesale lots include wedge anchors, sleeve anchors, and specialized Headed Stud anchor models designed for composite construction. It often helps when you know every shipment will arrive uniform, secure, and on time.
we offer scalable solutions with dependable pricing. Large contractors often choose our wholesale supply for multi-storey projects, railings, and structural work. You might notice how convenient it is when Concrete Anchor Fasteners arrive in strong packaging with the right sizes. By keeping Concrete bolt types consistent, we reduce delays and waste on-site.
Key Advantages
- Bulk supply of Concrete anchor Bolt options at fair, predictable prices.
- Wide stock of Concrete stud types including wedge, sleeve, and chemical anchors.
- Concrete stud price packages suited for contractors and distributors alike.
- Uniform batches help maintain consistent quality across large projects.
- Reliable packaging ensures safe delivery for nationwide or local bulk orders.
Contact our team today for concrete stud specifications and application guidance
Our Products Range
ACS-H Concrete Stud – Technical Specifications
Product :
Concrete Stud Anchor
Class :
Standard
Material Grade :
Carbon Steel, Zinc Plated
Description
Torque-controlled mechanical stud anchor for reliable static load transfer in concrete and dense substrates.
Key Features
Cold-formed body; predictable torque setting; consistent radial expansion; quick through-fix installation; cost-effective solution.
Applications
• Canopy structures & sunshade frames
• Signage frames & advertising hoardings
• Industrial racking systems
• Safety barriers & crash barriers
• Seismic restraint connections for services
• Staircase stringer supports
• Retrofits and strengthening works
| Code | Art No. | Anchor Dia mm | Anchor Length mm | Drill Hole Dia mm | Minima Embed Length Hnom1 mm | Maxima Embed Length Hnom2 mm | Maxima T.Fix Hnom1 / Hnom2 mm | Minima Drill Hole Depth Hnom1 / Hnom2 mm | Std. Thread Length mm | Nut Dia (SW) mm | Recommended Torque Nm | Recommended Safe Working Load (Uncracked Concrete C20/25) Tensile (kN) / Shear (kN) | Safe Distance Between Anchors mm | Safe Edge Distance mm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ACS-H-08075 | 2017111 | 8 | 75 | 8 | 40 | 50 | 20 / 10 | 45 / 55 | 35 | 13 | 15 | 5.1 / 5.2 | 60 | 60 |
| ACS-H-10090 | 2017122 | 10 | 90 | 10 | 50 | 60 | 25 / 15 | 60 / 70 | 40 | 17 | 30 | 7.2 / 8.8 | 70 | 70 |
| ACS-H-10100 | 2017123 | 10 | 100 | 10 | 50 | 60 | 35 / 25 | 60 / 70 | 45 | 17 | 30 | 7.2 / 8.8 | 70 | 70 |
| ACS-H-12100 | 2017136 | 12 | 100 | 12 | 60 | 75 | 20 / 5 | 70 / 85 | 35 | 19 | 50 | 10.2 / 13.9 | 80 | 90 |
| ACS-H-12110 | 2017144 | 12 | 110 | 12 | 60 | 75 | 30 / 15 | 70 / 85 | 45 | 19 | 50 | 10.2 / 13.9 | 80 | 90 |
| ACS-H-12120 | 2017137 | 12 | 120 | 12 | 60 | 75 | 40 / 25 | 70 / 85 | 55 | 19 | 50 | 10.2 / 13.9 | 80 | 90 |
| ACS-H-12150 | 2017139 | 12 | 150 | 12 | 60 | 75 | 70 / 55 | 70 / 85 | 85 | 19 | 50 | 10.2 / 13.9 | 80 | 90 |
| ACS-H-16120 | 2017151 | 16 | 120 | 16 | 80 | 95 | 15 / -- | 90 / 105 | 65 | 24 | 100 | 15.5 / 26.0 | 110 | 110 |
| ACS-H-16140 | 2017152 | 16 | 140 | 16 | 80 | 95 | 35 / 20 | 90 / 105 | 75 | 24 | 100 | 15.5 / 26.0 | 110 | 110 |
NOTE :
*All load tolerances can be achieved in accordance with the specified dimensions mentioned above.
*Any modifications to the product portfolio can be implemented without prior notification to the stakeholders.
*Special lengths can be provided upon request, subject to a minimum order quantity requirement.
*KN= Kilonewton (1KN = 100Kgs.)
ACS-R Concrete Stud – Technical Specifications
Product :
Concrete Stud Anchor
Class :
Premium
Material Grade :
Stainless Steel 304
Description
Corrosion-resistant stud anchor for medium-load exterior and wet-area concrete fixings.
Key Features
Torque-controlled expansion; SS304 corrosion resistance; cold-forged threads; stable long-term performance; suitable for semi-exposed zones.
Applications
• Canopy structures & sunshade frames
• Signage frames & advertising hoardings
• Industrial racking systems
• Safety barriers & crash barriers
• Seismic restraint connections for services
• Staircase stringer supports
• Retrofits and strengthening works
| CODE | ART NO. | ANCHOR DIA mm |
ANCHOR LENGTH mm |
DRILL HOLE DIA mm |
MINIMUM EMBED LENGTH (Hnom1) mm |
MAXIMUM EMBED LENGTH (Hnom2) mm |
MAXIMUM T.FIX Hnom1 / Hnom2 mm |
MINIMUM DRILL HOLE DEPTH Hnom1 / Hnom2 mm |
STD. THREAD LENGTH mm |
NUT DIA (SW) mm |
RECOMMENDED TORQUE Nm |
RECOMMENDED SAFE WORKING LOAD (Uncracked Concrete C20/25) Tensile / Shear (kN) |
SAFE DISTANCE BETWEEN ANCHORS mm |
SAFE EDGE DISTANCE mm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ACS-R-08075 | 2017311 | 8 | 75 | 8 | 40 | 50 | 20 / 10 | 45 / 55 | 35 | 13 | 15 | 5.1 / 5.2 | 60 | 60 |
| ACS-R-10090 | 2017321 | 10 | 90 | 10 | 50 | 60 | 20 / 15 | 60 / 70 | 40 | 17 | 30 | 7.2 / 9.2 | 70 | 70 |
| ACS-R-10100 | 2017322 | 10 | 100 | 10 | 50 | 60 | 30 / 25 | 60 / 70 | 50 | 17 | 30 | 7.2 / 9.2 | 70 | 70 |
| ACS-R-10130 | 2017323 | 10 | 130 | 10 | 60 | 90 | 50 / 20 | 70 / 100 | 65 | 17 | 30 | 7.2 / 9.2 | 70 | 70 |
| ACS-R-12100 | 2017335 | 12 | 100 | 12 | 60 | 75 | 15 / 5 | 70 / 85 | 35 | 19 | 50 | 10.2 / 13.3 | 80 | 90 |
| ACS-R-12120 | 2017336 | 12 | 120 | 12 | 60 | 75 | 35 / 25 | 70 / 85 | 55 | 19 | 50 | 10.2 / 13.3 | 80 | 90 |
| ACS-R-12130 | 2017337 | 12 | 130 | 12 | 70 | 90 | 40 / 10 | 80 / 100 | 65 | 19 | 50 | 10.2 / 13.3 | 80 | 90 |
| ACS-R-12150 | 2017338 | 12 | 150 | 12 | 60 | 75 | 65 / 55 | 70 / 85 | 85 | 19 | 50 | 10.2 / 13.3 | 80 | 90 |
| ACS-R-16140 | 2017353 | 16 | 140 | 16 | 80 | 95 | 35 / 20 | 90 / 105 | 75 | 24 | 100 | 13.7 / 24.9 | 110 | 110 |
ACS-HS Concrete Stud – Technical Specifications
Product :
High Strength Stud Anchor
Class :
Premium
Material Grade :
Carbon Steel, Zinc Plated
Description
High-load stud anchor for demanding structural connections in concrete.
Key Features
Higher tensile capacity; optimized expansion cone; controlled torque installation; cold-formed threads; reliable load transfer.
Applications
• Canopy structures & sunshade frames
• Signage frames & advertising hoardings
• Industrial racking systems
• Safety barriers & crash barriers
• Seismic restraint connections for services
• Staircase stringer supports
• Retrofits and strengthening works
| Code | Art No. | Anchor Dia mm |
Anchor Length mm |
Drill Hole Dia mm |
Min Embed Length Hnom1 (mm) |
Max Embed Length Hnom2 (mm) |
Max T.Fix Hnom1 / Hnom2 (mm) |
Min Drill Hole Depth Hnom1 / Hnom2 (mm) |
Std. Thread Length mm |
Nut Dia (SW) mm |
Recommended Torque Nm |
Safe Working Load (C20/25) Tensile / Shear (kN) |
Safe Distance Between Anchors mm |
Safe Edge Distance mm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ACS-HS-06050 | 2017260 | 6 | 50 | 6 | 30 | 35 | 5 / - | 35 / 40 | 20 | 10 | 5 | 3.0 / 3.8 | 35 | 35 |
| ACS-HS-06065 | 2017261 | 6 | 65 | 6 | 35 | 40 | 10 / 5 | 40 / 45 | 30 | 10 | 5 | 3.8 / 3.9 | 35 | 35 |
| ACS-HS-06085 | 2017262 | 6 | 85 | 6 | 50 | 60 | 15 / 5 | 55 / 65 | 35 | 10 | 5 | 4.5 / 3.9 | 35 | 35 |
| ACS-HS-06100 | 2017263 | 6 | 100 | 6 | 55 | 65 | 25 / 15 | 60 / 70 | 45 | 10 | 5 | 4.5 / 3.9 | 35 | 35 |
| ACS-HS-08060 | 2017201 | 8 | 60 | 8 | 40 | - | 5 / - | 45 / - | 25 | 13 | 15 | 6.5 / 6.5 | 35 | 35 |
| ACS-HS-08075 | 2017202 | 8 | 75 | 8 | 40 | 50 | 15 / 5 | 45 / 55 | 40 | 13 | 15 | 6.5 / 6.5 | 35 | 35 |
| ACS-HS-08095 | 2017203 | 8 | 95 | 8 | 50 | 70 | 25 / 5 | 55 / 75 | 45 | 13 | 15 | 7.8 / 6.5 | 35 | 35 |
| ACS-HS-08115 | 2017204 | 8 | 115 | 8 | 50 | 80 | 45 / 15 | 55 / 85 | 55 | 13 | 15 | 7.8 / 6.5 | 35 | 35 |
| ACS-HS-10075 | 2017211 | 10 | 75 | 10 | 50 | 55 | 5 / - | 60 / 65 | 40 | 17 | 25 | 9.2 / 10.5 | 50 | 50 |
| ACS-HS-10095 | 2017212 | 10 | 95 | 10 | 50 | 60 | 25 / 15 | 60 / 70 | 45 | 17 | 25 | 9.2 / 10.5 | 50 | 50 |
| ACS-HS-10115 | 2017213 | 10 | 115 | 10 | 50 | 90 | 45 / 5 | 60 / 100 | 55 | 17 | 25 | 9.2 / 10.5 | 50 | 45 |
| ACS-HS-10130 | 2017215 | 10 | 130 | 10 | 60 | 90 | 50 / 20 | 70 / 100 | 65 | 17 | 25 | 10.3 / 10.8 | 50 | 40 |
| ACS-HS-10150 | 2017216 | 10 | 150 | 10 | 70 | 90 | 60 / 40 | 80 / 100 | 80 | 17 | 25 | 11.5 / 11.0 | 50 | 40 |
| ACS-HS-10170 | 2017217 | 10 | 170 | 10 | 70 | 90 | 80 / 60 | 80 / 100 | 95 | 17 | 25 | 11.5 / 11.0 | 50 | 40 |
| ACS-HS-12095 | 2017225 | 12 | 95 | 12 | 65 | 75 | 10 / - | 75 / 85 | 35 | 19 | 50 | 12.8 / 17.0 | 75 | 65 |
| ACS-HS-12115 | 2017226 | 12 | 115 | 12 | 65 | 80 | 30 / 15 | 75 / 85 | 55 | 19 | 50 | 12.8 / 17.0 | 75 | 65 |
| ACS-HS-12130 | 2017228 | 12 | 130 | 12 | 70 | 100 | 40 / 10 | 80 / 85 | 65 | 19 | 50 | 12.8 / 17.0 | 75 | 65 |
| ACS-HS-12150 | 2017229 | 12 | 150 | 12 | 70 | 100 | 60 / 25 | 80 / 110 | 80 | 19 | 50 | 12.8 / 17.0 | 75 | 65 |
| ACS-HS-12175 | 2017230 | 12 | 175 | 12 | 90 | 100 | 65 / 55 | 100 / 110 | 90 | 19 | 50 | 16.8 / 16.9 | 75 | 65 |
| ACS-HS-12205 | 2017231 | 12 | 205 | 12 | 90 | 100 | 90 / 80 | 100 / 110 | 95 | 19 | 50 | 16.8 / 16.9 | 75 | 65 |
| ACS-HS-12225 | 2017232 | 12 | 225 | 12 | 90 | 100 | 110 / 100 | 100 / 110 | 100 | 19 | 50 | 16.8 / 16.9 | 75 | 65 |
| ACS-HS-16105 | 2017241 | 16 | 105 | 16 | 75 | - | 10 / - | 85 / - | 50 | 24 | 80 | 17.5 / 29.7 | 90 | 80 |
| ACS-HS-16125 | 2017242 | 16 | 125 | 16 | 75 | 90 | 25 / 10 | 85 / 100 | 60 | 24 | 80 | 17.5 / 29.7 | 90 | 80 |
| ACS-HS-16145 | 2017243 | 16 | 145 | 16 | 75 | 100 | 45 / 25 | 85 / 110 | 75 | 24 | 80 | 17.5 / 29.7 | 90 | 80 |
| ACS-HS-16180 | 2017245 | 16 | 180 | 16 | 100 | 135 | 60 / 20 | 110 / 145 | 90 | 24 | 80 | 23.5 / 29.8 | 90 | 80 |
| ACS-HS-16235 | 2017246 | 16 | 235 | 16 | 100 | 135 | 100 / 75 | 110 / 145 | 95 | 24 | 80 | 23.5 / 29.8 | 90 | 80 |
| ACS-HS-20130 | 2017255 | 20 | 130 | 20 | 90 | 100 | 15 / 10 | 100 / 110 | 65 | 30 | 200 | 30.0 / 49.5 | 175 | 120 |
| ACS-HS-20170 | 2017256 | 20 | 170 | 20 | 90 | 130 | 60 / 20 | 100 / 140 | 80 | 30 | 200 | 30.0 / 49.5 | 175 | 120 |
NOTE :
*All load tolerances can be achieved in accordance with the specified dimensions mentioned above.
*Any modifications to the product portfolio can be implemented without prior notification to the stakeholders.
*Special lengths can be provided upon request, subject to a minimum order quantity requirement.
*KN= Kilonewton (1KN = 100Kgs.)
ACS-SR Concrete Stud – Technical Specifications
Product :
High Strength Stud Anchor
Class :
Elite
Material Grade :
Stainless Steel 316
Description
High-load stud anchor for aggressive and coastal environments requiring corrosion resistance.
Key Features
High static & dynamic capacity; SS316 marine-grade durability; stable expansion geometry; long service life; suitable for harsh outdoor zones.
Applications
• Façade support brackets & façade sub-frame fixings
• Structural steel base plates
• Handrails, guardrails, balustrades
• Equipment foundations & machine base frames
• MEP supports: HVAC units, AHU frames, cable trays, pipe racks
| Code | Art No. | Anchor Dia mm |
Anchor Length mm |
Drill Hole Dia mm |
Min Embed Length Hnom1 (mm) |
Max Embed Length Hnom2 (mm) |
Max T.Fix Hnom1 / Hnom2 (mm) |
Min Drill Hole Depth Hnom1 / Hnom2 (mm) |
Std. Thread Length mm |
Nut Dia (SW) mm |
Recommended Torque Nm |
Safe Working Load (C20/25) Tensile / Shear (kN) |
Safe Distance Between Anchors mm |
Safe Edge Distance mm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ACS-SR-06050 | 2017470 | 6 | 50 | 6 | 30 | 35 | 5 / - | 35 / 40 | 20 | 10 | 5 | 3.0 / 4.2 | 35 | 35 |
| ACS-SR-06065 | 2017471 | 6 | 65 | 6 | 35 | 40 | 10 / 5 | 40 / 45 | 30 | 10 | 5 | 3.8 / 4.2 | 35 | 35 |
| ACS-SR-06085 | 2017472 | 6 | 85 | 6 | 50 | 60 | 15 / 5 | 55 / 65 | 35 | 10 | 5 | 4.5 / 4.2 | 35 | 35 |
| ACS-SR-06100 | 2017473 | 6 | 100 | 6 | 55 | 65 | 25 / 15 | 60 / 70 | 45 | 10 | 5 | 4.5 / 4.2 | 35 | 35 |
| ACS-SR-08060 | 2017410 | 8 | 60 | 8 | 40 | - | 5 / - | 45 / - | 25 | 13 | 15 | 6.5 / 7.0 | 35 | 35 |
| ACS-SR-08075 | 2017411 | 8 | 75 | 8 | 40 | 50 | 15 / 5 | 45 / 55 | 40 | 13 | 15 | 6.5 / 7.0 | 35 | 35 |
| ACS-SR-08095 | 2017412 | 8 | 95 | 8 | 50 | 70 | 25 / 5 | 55 / 75 | 45 | 13 | 15 | 7.8 / 7.0 | 35 | 35 |
| ACS-SR-08115 | 2017413 | 8 | 115 | 8 | 50 | 80 | 45 / 15 | 55 / 85 | 55 | 13 | 15 | 7.8 / 7.0 | 35 | 35 |
| ACS-SR-10075 | 2017420 | 10 | 75 | 10 | 50 | 55 | 5 / - | 60 / 65 | 40 | 17 | 25 | 9.2 / 13.1 | 50 | 50 |
| ACS-SR-10095 | 2017421 | 10 | 95 | 10 | 50 | 60 | 25 / 15 | 60 / 70 | 45 | 17 | 25 | 9.2 / 13.1 | 50 | 50 |
| ACS-SR-10115 | 2017422 | 10 | 115 | 10 | 50 | 90 | 45 / 5 | 60 / 100 | 55 | 17 | 25 | 9.2 / 13.1 | 50 | 45 |
| ACS-SR-10130 | 2017423 | 10 | 130 | 10 | 60 | 90 | 50 / 20 | 70 / 100 | 65 | 17 | 25 | 10.3 / 13.1 | 50 | 40 |
| ACS-SR-10150 | 2017424 | 10 | 150 | 10 | 70 | 90 | 60 / 40 | 80 / 100 | 80 | 17 | 25 | 11.5 / 13.1 | 50 | 40 |
| ACS-SR-10170 | 2017425 | 10 | 170 | 10 | 70 | 90 | 80 / 60 | 80 / 100 | 95 | 17 | 25 | 11.5 / 13.1 | 50 | 40 |
| ACS-SR-12095 | 2017430 | 12 | 95 | 12 | 65 | 75 | 10 / - | 75 / 85 | 35 | 19 | 50 | 12.8 / 17.0 | 75 | 65 |
| ACS-SR-12115 | 2017431 | 12 | 115 | 12 | 65 | 80 | 30 / 15 | 75 / 85 | 55 | 19 | 50 | 12.8 / 17.0 | 75 | 65 |
| ACS-SR-12130 | 2017432 | 12 | 130 | 12 | 70 | 100 | 40 / 10 | 80 / 85 | 65 | 19 | 50 | 12.8 / 17.0 | 75 | 65 |
| ACS-SR-12150 | 2017433 | 12 | 150 | 12 | 70 | 100 | 60 / 25 | 80 / 110 | 80 | 19 | 50 | 12.8 / 17.0 | 75 | 65 |
| ACS-SR-12175 | 2017434 | 12 | 175 | 12 | 90 | 100 | 65 / 55 | 100 / 110 | 90 | 19 | 50 | 16.8 / 16.9 | 75 | 65 |
| ACS-SR-12205 | 2017435 | 12 | 205 | 12 | 90 | 100 | 90 / 80 | 100 / 110 | 95 | 19 | 50 | 16.8 / 16.9 | 75 | 65 |
| ACS-SR-12225 | 2017435 | 12 | 225 | 12 | 90 | 100 | 110 / 100 | 100 / 110 | 100 | 19 | 50 | 16.8 / 16.9 | 75 | 65 |
| ACS-SR-16105 | 2017440 | 16 | 105 | 16 | 75 | - | 10 / - | 85 / - | 50 | 24 | 80 | 17.5 / 32.5 | 90 | 80 |
| ACS-SR-16125 | 2017441 | 16 | 125 | 16 | 75 | 90 | 25 / 10 | 85 / 100 | 60 | 24 | 80 | 17.5 / 32.5 | 90 | 80 |
| ACS-SR-16145 | 2017442 | 16 | 145 | 16 | 75 | 100 | 45 / 25 | 85 / 110 | 75 | 24 | 80 | 17.5 / 32.5 | 90 | 80 |
| ACS-SR-16180 | 2017443 | 16 | 180 | 16 | 100 | 135 | 60 / 20 | 110 / 145 | 90 | 24 | 80 | 23.5 / 32.5 |
AHS-AS Concrete Stud – Technical Specifications
Product :
Ultimate Strength Stud Anchor
Class :
Elite
Material Grade :
Alloy Steel, Zinc Plated
Description
Ultra high-load mechanical anchor for critical structural and safety-related fixings.
Key Features
High-tensile alloy steel core; robust expansion clip; deep embedment for high loads; vibration-resistant design; suitable for heavy machinery bases.
Applications
• Façade support brackets & façade sub-frame fixings
• Structural steel base plates
• Handrails, guardrails, balustrades
• Equipment foundations & machine base frames
• MEP supports: HVAC units, AHU frames, cable trays, pipe racks
| Code | Art No. | Anchor Dia mm |
Anchor Length mm |
Drill Hole Dia mm |
Min Embed Length Hnom1 (mm) |
Max Embed Length Hnom2 (mm) |
Max T.Fix Hnom1 / Hnom2 (mm) |
Min Drill Hole Depth Hnom1 / Hnom2 (mm) |
Std. Thread Length mm |
Nut Dia (AF/SW) mm |
Recommended Torque Nm |
Safe Working Load (Uncracked C20/25) Tensile / Shear (kN) |
Safe Working Load (Cracked C20/25) Tensile / Shear (kN) |
Safe Distance Between Anchors mm |
Safe Edge Distance mm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AHS-AS-08075 | 2017511 | 8 | 75 | 8 | 50 | 55 | 15 / 10 | 55 / 60 | 40 | 13 | 20 | 7.0 / 8.0 | 4.0 / 8.0 | 35 | 40 |
| AHS-AS-08095 | 2017512 | 8 | 95 | 8 | 50 | 55 | 30 / 25 | 55 / 60 | 45 | 13 | 20 | 7.0 / 8.0 | 4.0 / 8.0 | 35 | 40 |
| AHS-AS-08115 | 2017513 | 8 | 115 | 8 | 55 | 100 | 50 / 5 | 60 / 105 | 60 | 13 | 20 | 7.0 / 8.0 | 4.0 / 8.0 | 35 | 40 |
| AHS-AS-10090 | 2017520 | 10 | 90 | 10 | 50 | 70 | 25 / 10 | 60 / 80 | 45 | 17 | 45 | 11.0 / 13.5 | 7.5 / 13.5 | 50 | 45 |
| AHS-AS-10100 | 2017521 | 10 | 100 | 10 | 50 | 70 | 35 / 20 | 60 / 80 | 50 | 17 | 45 | 11.0 / 13.5 | 7.5 / 13.5 | 50 | 45 |
| AHS-AS-10120 | 2017522 | 10 | 120 | 10 | 50 | 70 | 50 / 30 | 60 / 80 | 60 | 17 | 45 | 11.0 / 13.5 | 7.5 / 13.5 | 50 | 45 |
| AHS-AS-10130 | 2017523 | 10 | 130 | 10 | 50 | 100 | 60 / 10 | 60 / 110 | 70 | 17 | 45 | 11.0 / 13.5 | 7.5 / 13.5 | 50 | 45 |
| AHS-AS-10150 | 2017524 | 10 | 150 | 10 | 50 | 100 | 80 / 30 | 60 / 110 | 80 | 17 | 45 | 11.0 / 13.5 | 7.5 / 13.5 | 50 | 45 |
| AHS-AS-10200 | 2017525 | 10 | 200 | 10 | 50 | 100 | 130 / 80 | 60 / 110 | 100 | 17 | 45 | 11.0 / 13.5 | 7.5 / 13.5 | 50 | 45 |
| AHS-AS-12100 | 2017535 | 12 | 100 | 12 | 60 | 75 | 20 / 5 | 70 / 85 | 50 | 19 | 60 | 13.5 / 19.5 | 9.5 / 19.5 | 60 | 55 |
| AHS-AS-12120 | 2017536 | 12 | 120 | 12 | 60 | 80 | 35 / 20 | 70 / 90 | 60 | 19 | 60 | 13.5 / 19.5 | 9.5 / 19.5 | 60 | 55 |
| AHS-AS-12130 | 2017537 | 12 | 130 | 12 | 60 | 80 | 45 / 25 | 70 / 90 | 70 | 19 | 60 | 13.5 / 19.5 | 9.5 / 19.5 | 60 | 55 |
| AHS-AS-12150 | 2017538 | 12 | 150 | 12 | 60 | 80 | 65 / 30 | 70 / 90 | 80 | 19 | 60 | 13.5 / 19.5 | 9.5 / 19.5 | 60 | 55 |
| AHS-AS-12170 | 2017539 | 12 | 170 | 12 | 60 | 135 | 90 / 15 | 70 / 145 | 90 | 19 | 60 | 13.5 / 19.5 | 9.5 / 19.5 | 60 | 55 |
| AHS-AS-12230 | 2017540 | 12 | 230 | 12 | 60 | 135 | 150 / 75 | 70 / 145 | 95 | 19 | 60 | 13.5 / 19.5 | 9.5 / 19.5 | 60 | 55 |
| AHS-AS-12260 | 2017541 | 12 | 260 | 12 | 60 | 135 | 180 / 100 | 70 / 145 | 100 | 19 | 60 | 13.5 / 19.5 | 9.5 / 19.5 | 60 | 55 |
| AHS-AS-12300 | 2017542 | 12 | 300 | 12 | 60 | 135 | 220 / 140 | 70 / 145 | 100 | 19 | 60 | 13.5 / 19.5 | 9.5 / 19.5 | 60 | 55 |
| AHS-AS-16150 | 2017550 | 16 | 150 | 16 | 80 | 100 | 50 / 30 | 90 / 110 | 80 | 24 | 110 | 18.5 / 33.0 | 13.0 / 33.0 | 80 | 75 |
| AHS-AS-16170 | 2017551 | 16 | 170 | 16 | 80 | 100 | 70 / 50 | 90 / 110 | 90 | 24 | 110 | 18.5 / 33.0 | 13.0 / 33.0 | 80 | 75 |
| AHS-AS-16220 | 2017552 | 16 | 220 | 16 | 80 | 175 | 120 / 25 | 90 / 185 | 95 | 24 | 110 | 18.5 / 33.0 | 13.0 / 33.0 | 80 | 75 |
| AHS-AS-16260 | 2017553 | 16 | 260 | 16 | 80 | 175 | 150 / 90 | 90 / 185 | 100 | 24 | 110 | 18.5 / 32.0 | 13.0 / 33.0 | 80 | 75 |
| AHS-AS-16300 | 2017554 | 16 | 300 | 16 | 80 | 175 | 200 / 80 | 90 / 185 | 100 | 24 | 110 | 18.5 / 32.0 | 13.0 / 33.0 | 80 | 75 |
| AHS-AS-20170 | 2017560 | 20 | 170 | 20 | 120 | 120 | 30 / 30 | 130 / 130 | 85 | 30 | 240 | 32.0 / 53.5 | 17.0 / 48.5 | 120 | 110 |
| AHS-AS-20200 | 2017561 | 20 | 200 | 20 | 120 | 120 | 60 / 60 | 130 / 130 | 90 | 30 | 240 | 32.0 / 53.5 | 17.0 / 48.5 | 120 | 110 |
| AHS-AS-20260 | 2017562 | 20 | 260 | 20 | 120 | 200 | 120 / 40 | 130 / 130 | 100 | 30 | 240 | 32.0 / 53.5 | 17.0 / 48.5 | 120 | 110 |
| AHS-AS-24200 | 2017570 | 24 | 200 | 24 | 150 | 150 | 30 / 30 | 160 / 160 | 90 | 36 | 300 | 33.5 / 55.0 | 19.0 / 50.0 | 180 | 170 |
| AHS-AS-24230 | 2017571 | 24 | 230 | 24 | 150 | 170 | 60 / 40 | 160 / 180 | 95 | 36 | 300 | 33.5 / 55.0 | 19.0 / 50.0 | 180 | 170 |
AHS-SR Concrete Stud – Technical Specifications
Product :
Ultimate Strength Stud Anchor
Class :
Elite
Material Grade :
Stainless Steel 316
Description
Ultimate-strength stud anchor with premium corrosion resistance for severe environments.
Key Features
SS316 stainless steel; extreme load class; long service life; stable torque- controlled expansion; suitable for coastal & industrial zones.
Applications
• Façade support brackets & façade sub-frame fixings
• Structural steel base plates
• Handrails, guardrails, balustrades
• Equipment foundations & machine base frames
• MEP supports: HVAC units, AHU frames, cable trays, pipe racks
| Code | Art No. | Anchor Dia mm |
Anchor Length mm |
Drill Hole Dia mm |
Min Embed Length Hnom1 (mm) |
Max Embed Length Hnom2 (mm) |
Max T.Fix Hnom1 / Hnom2 (mm) |
Min Drill Hole Depth Hnom1 / Hnom2 (mm) |
Std. Thread Length mm |
Nut Dia (AF/SW) mm |
Recommended Torque Nm |
Safe Working Load (Uncracked C20/25) Tensile / Shear (kN) |
Safe Working Load (Cracked C20/25) Tensile / Shear (kN) |
Safe Distance Between Anchors mm |
Safe Edge Distance mm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AHS-SR-08075 | 2017616 | 8 | 75 | 8 | 50 | 55 | 15 / 10 | 55 / 60 | 40 | 13 | 20 | 8.0 / 9.0 | 4.5 / 8.5 | 35 | 40 |
| AHS-SR-08095 | 2017617 | 8 | 95 | 8 | 50 | 55 | 30 / 25 | 55 / 60 | 45 | 13 | 20 | 8.0 / 9.0 | 4.5 / 8.5 | 35 | 40 |
| AHS-SR-08115 | 2017618 | 8 | 115 | 8 | 55 | 100 | 50 / 5 | 60 / 105 | 60 | 13 | 20 | 8.0 / 9.0 | 4.5 / 8.5 | 35 | 40 |
| AHS-SR-10090 | 2017625 | 10 | 90 | 10 | 50 | 70 | 25 / 10 | 60 / 80 | 45 | 17 | 45 | 12.0 / 14.5 | 8.0 / 14.0 | 50 | 45 |
| AHS-SR-10100 | 2017626 | 10 | 100 | 10 | 50 | 70 | 35 / 20 | 60 / 80 | 50 | 17 | 45 | 12.0 / 14.5 | 8.0 / 14.0 | 50 | 45 |
| AHS-SR-10120 | 2017627 | 10 | 120 | 10 | 50 | 70 | 50 / 30 | 60 / 80 | 60 | 17 | 45 | 12.0 / 14.5 | 8.0 / 14.0 | 50 | 45 |
| AHS-SR-10130 | 2017628 | 10 | 130 | 10 | 50 | 100 | 60 / 10 | 60 / 110 | 70 | 17 | 45 | 12.0 / 14.5 | 8.0 / 14.0 | 50 | 45 |
| AHS-SR-10150 | 2017629 | 10 | 150 | 10 | 50 | 100 | 80 / 30 | 60 / 110 | 80 | 17 | 45 | 12.0 / 14.5 | 8.0 / 14.0 | 50 | 45 |
| AHS-SR-12100 | 2017635 | 12 | 100 | 12 | 60 | 75 | 20 / 5 | 70 / 85 | 50 | 19 | 60 | 14.0 / 21.5 | 10.0 / 21.0 | 60 | 55 |
| AHS-SR-12120 | 2017636 | 12 | 120 | 12 | 60 | 80 | 35 / 20 | 70 / 90 | 60 | 19 | 60 | 14.0 / 21.5 | 10.0 / 21.0 | 60 | 55 |
| AHS-SR-12130 | 2017637 | 12 | 130 | 12 | 60 | 80 | 45 / 25 | 70 / 90 | 70 | 19 | 60 | 14.0 / 21.5 | 10.0 / 21.0 | 60 | 55 |
| AHS-SR-12150 | 2017638 | 12 | 150 | 12 | 60 | 80 | 65 / 30 | 70 / 90 | 80 | 19 | 60 | 14.0 / 21.5 | 10.0 / 21.0 | 60 | 55 |
| AHS-SR-12170 | 2017639 | 12 | 170 | 12 | 60 | 135 | 90 / 15 | 70 / 145 | 90 | 19 | 60 | 14.0 / 21.5 | 10.0 / 21.0 | 60 | 55 |
| AHS-SR-12230 | 2017640 | 12 | 230 | 12 | 60 | 135 | 150 / 75 | 70 / 145 | 95 | 19 | 60 | 14.0 / 21.5 | 10.0 / 21.0 | 60 | 55 |
| AHS-SR-16150 | 2017653 | 16 | 150 | 16 | 80 | 100 | 50 / 30 | 90 / 110 | 80 | 24 | 110 | 19.5 / 37.0 | 13.5 / 36.5 | 80 | 75 |
| AHS-SR-16170 | 2017654 | 16 | 170 | 16 | 80 | 100 | 70 / 50 | 90 / 110 | 90 | 24 | 110 | 19.5 / 37.0 | 13.5 / 36.5 | 80 | 75 |
| AHS-SR-16220 | 2017655 | 16 | 220 | 16 | 80 | 175 | 120 / 25 | 90 / 185 | 95 | 24 | 110 | 19.5 / 37.0 | 13.5 / 36.5 | 80 | 75 |
| AHS-SR-16260 | 2017656 | 16 | 260 | 16 | 80 | 175 | 150 / 90 | 90 / 185 | 100 | 24 | 110 | 19.5 / 37.0 | 13.5 / 36.5 | 80 | 75 |
| AHS-SR-20170 | 2017661 | 20 | 170 | 20 | 120 | 120 | 30 / 30 | 130 / 130 | 85 | 30 | 240 | 33.0 / 55.5 | 17.5 / 53.5 | 120 | 110 |
| AHS-SR-20200 | 2017662 | 20 | 200 | 20 | 120 | 120 | 60 / 60 | 130 / 130 | 90 | 30 | 240 | 33.0 / 55.5 | 17.5 / 53.5 | 120 | 110 |
| AHS-SR-24200 | 2017665 | 24 | 200 | 24 | 150 | 150 | 30 / 30 | 160 / 160 | 90 | 36 | 300 | 34.0 / 64.0 | 19.5 / 57.5 | 180 | 170 |
| AHS-SR-24230 | 2017666 | 24 | 230 | 24 | 150 | 170 | 60 / 40 | 160 / 180 | 95 | 36 | 300 | 34.0 / 64.0 | 19.5 / 57.5 | 180 | 170 |
AHS-HCR Concrete Stud – Technical Specifications
Product :
High Corrosion Resistant Stud Anchor
Class :
Elite
Material Grade :
HCR Coated / SS Grade
Description
High corrosion resistant stud anchor for aggressive industrial and marine environments.
Key Features
Enhanced corrosion protection; long service life; high mechanical load capacity; suitable for chemical exposure zones; reduced maintenance lifecycle cost.
Applications
• Façade support brackets & façade sub-frame fixings
• Structural steel base plates
• Handrails, guardrails, balustrades
• Equipment foundations & machine base frames
• MEP supports: HVAC units, AHU frames, cable trays, pipe racks
| Code | Art No. | Anchor Dia mm |
Anchor Length mm |
Drill Hole Dia mm |
Min Embed Length Hnom1 (mm) |
Max Embed Length Hnom2 (mm) |
Max T.Fix Hnom1 / Hnom2 (mm) |
Min Drill Hole Depth Hnom1 / Hnom2 (mm) |
Std. Thread Length mm |
Nut Dia (SW) mm |
Recommended Torque Nm |
Safe Working Load (Uncracked/Cracked C20/25) Tensile / Shear (kN) |
Safe Distance Between Anchors mm |
Safe Edge Distance mm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AHS-HCR-08100 | 2017710 | 8 | 100 | 8 | 50 | 70 | 35 / 10 | 60 / 80 | 50 | 13 | 20 | 7.5 / 8.5 | 60 | 60 |
| AHS-HCR-10130 | 2017720 | 10 | 130 | 10 | 60 | 80 | 60 / 30 | 70 / 90 | 60 | 17 | 40 | 11.5 / 13.8 | 70 | 70 |
| AHS-HCR-12150 | 2017130 | 12 | 150 | 12 | 70 | 100 | 65 / 30 | 80 / 110 | 70 | 19 | 60 | 13.7 / 20.0 | 70 | 70 |
| AHS-HCR-16150 | 2017140 | 16 | 150 | 16 | 80 | 110 | 50 / 20 | 90 / 120 | 75 | 24 | 80 | 19.0 / 34.0 | 80 | 90 |
