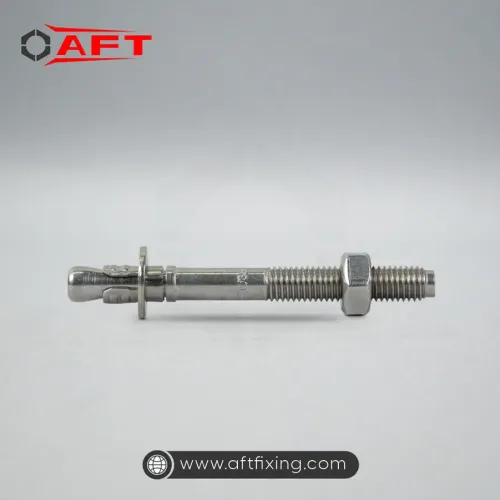

Wedge Anchors Manufacturers in India focus on producing fastening solutions that are meant for situations where failure is simply not an option. These anchors are commonly selected for permanent installations, especially Wedge anchors for concrete, where strength, grip, and long-term stability matter more than anything else. The manufacturing process revolves around controlled expansion accuracy, material consistency, and load reliability rather than just mass production.
What truly separates good manufacturers from average ones is their attention to performance under real site conditions. Pull-out resistance, tolerance to vibration, and long-term stress behavior are also tested on anchors to ensure that the anchors remain functional well after they have been reinstalled.
Why Manufacturers Matter:
- Designed for permanent and load-critical fixings
- Tested under real-world stress conditions
- Consistent expansion and grip reliability
- Suitable for demanding structural applications
Materials Used in Wedge Anchor Manufacturing
A Wedge Anchor Fastener is usually made with materials that have been selected according to the areas of strength and resistance to the environment. Standard conditions are made of carbon steel, whereas stainless steel and alloy steel are chosen in conditions of corrosion or high loads. Direct relationship between material selection and lifespan and performance.
Material Choices Include:
- Carbon steel for general applications
- Stainless steel for corrosion resistance
- Alloy steel for heavy-load use
- Protective coatings for durability
Wedge Anchors Suppliers and Dealers in India – Delivering Strength with Every Fastener
The Wedge Anchors Suppliers in India are important in the delivery of the correct fastening solution to the site at the appropriate time. A Wedge Anchor Fastener is not a “fit-all-purpose item which should suit the conditions of the load, the strength of the base material, and the depth of the installation. Accurate suppliers know this and are not only interested in availability.
Besides supplying, AFT provides skilled suppliers who usually assist contractors in choosing the best anchors to prevent most errors that occur on-site, which reduces the holding capacity. This practical support improves both safety and installation confidence.
The Wedge Anchors Dealers in India provide quick access to fastening solutions as they stock Wedge anchors of all different sizes. Proper sizing has a direct influence on the performance of the anchor, and the dealers assist in bridging the gap between the technical requirements on the site level. Their involvement is essential when the projects are in urgent need of procurement without any delays.
How to Choose the Right Wedge Anchors
The choice of the right Wedge anchors sizes does not rely on diameter only. Performance is dependent on load requirements, embedment depth, and thickness of the fixtures, as well as concrete strength. The selection is made to guarantee maximum holding and longevity.
Selection Tips:
- Match anchor size with load demand
- Ensure correct embedment depth
- Verify concrete quality
- Follow technical recommendations
Wedge Anchors Wholesalers in India – Strength, Affordability, and Quick Supply
Wedge Anchors Wholesalers in India, which serves massive construction and infrastructure projects by offering a stable price structure of Wedge anchors and volume purchases. Bulk procurement provides consistency in quality among the installations, and long-term projects can be managed at a better cost.
Wholesalers also pay attention to the correct storage, packaging, and consistency of the batches in order to make anchors work in the same way in various stages of installation. This reliability becomes essential when safety and timelines are tightly linked.
Wholesale Advantages:
- Cost-efficient bulk procurement
- Consistent quality across quantities
- Fast dispatch for large projects
- Reliable stock management
How Do Wedge Anchors Work?
Various types of Wedge anchors are based on a very basic yet very efficient mechanical mechanism.The anchor when screwed in the hole that has been drilled and tight, spreads out and sticks to the concrete walls firmly. This development gives a strong force of mechanical grip that opposes the pull-out and shear forces..
Working Highlights:
- Expansion-based mechanical locking
- Strong frictional grip inside concrete
- High resistance to movement
- Designed for permanent fixing
Where Are Wedge Anchors Commonly Used?
Concrete anchors, which are a common tool where permanent, high-strength fixing is involved. The anchors are normally implemented on structural steel, heavy equipment, support brackets, and also safety railings in commercial and industrial settings.
Typical Applications:
- Structural steel connections
- Machinery and equipment installation
- Handrails and safety barriers
- Industrial construction projects
Common Installation Mistakes to Avoid
Installation errors with different Wedge anchors types often reduce performance without being immediately visible.Poor concrete, over tightened hole, or incorrect hole diameter not cleaned properly can influence the strength of the anchors though the anchors could be of high quality.
Mistakes to Avoid:
- Improper drilling depth or diameter
- Skipping hole cleaning
- Over-tightening during installation
- Installing in low-strength concrete
Why Certified Wedge Anchors Matter for Structural Safety
Certified Wedge Anchor Fastener is a product that has been examined in regard to load capability, shear resistance, and durability. It is particularly in structural uses where failure margins count and where failure may result in serious consequences that certification is particularly important.
Why Certification Is Important:
- Verified load performance
- Compliance with safety standards
- Reduced structural risk
- Suitable for critical installations
Maintenance Requirements for Wedge Anchors
Whether the price of the Wedge anchors is high or low, structural safety cannot be ensured without regular checkups. Verification of corrosion, loosening, or environmental damage assists in increasing the service life and ensures that the anchors run as expected in the long run.
Maintenance Practices:
- Visual inspection at intervals
- Check tightness in dynamic areas
- Replace damaged anchors promptly
- Monitor environmental exposure
Advantages of Using Wedge Anchors
The types of Wedge anchors are known to provide unparalleled strength, stability, and lasting service in permanent installations. They are a reliable option in industries by virtue of their capacity to carry heavy loads, yet they are not shaken or moved.
Key Advantages:
- High load-bearing capacity
- Secure mechanical expansion
- Long service life
- Ideal for permanent fixing
Choose AFT wedge anchors for high-load concrete fixing.
Our Products Range
AHS-HCR
ACS-R
ACS-SR
AHS-AS
AHS-SR
ACS-H
ACS-SR Wedge Anchors – Technical Specifications
Product :
High Strength Stud Anchor
Class :
Elite
Material Grade :
Stainless Steel 316
Description
High-load stud anchor for aggressive and coastal environments requiring corrosion resistance.
Key Features
High static & dynamic capacity; SS316 marine-grade durability; stable expansion geometry; long service life; suitable for harsh outdoor zones.
Applications
• Façade support brackets & façade sub-frame fixings
• Structural steel base plates
• Handrails, guardrails, balustrades
• Equipment foundations & machine base frames
• MEP supports: HVAC units, AHU frames, cable trays, pipe racks
| Code | Art No. | Anchor Dia mm |
Anchor Length mm |
Drill Hole Dia mm |
Min Embed Length Hnom1 (mm) |
Max Embed Length Hnom2 (mm) |
Max T.Fix Hnom1 / Hnom2 (mm) |
Min Drill Hole Depth Hnom1 / Hnom2 (mm) |
Std. Thread Length mm |
Nut Dia (SW) mm |
Recommended Torque Nm |
Safe Working Load (C20/25) Tensile / Shear (kN) |
Safe Distance Between Anchors mm |
Safe Edge Distance mm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ACS-SR-06050 | 2017470 | 6 | 50 | 6 | 30 | 35 | 5 / - | 35 / 40 | 20 | 10 | 5 | 3.0 / 4.2 | 35 | 35 |
| ACS-SR-06065 | 2017471 | 6 | 65 | 6 | 35 | 40 | 10 / 5 | 40 / 45 | 30 | 10 | 5 | 3.8 / 4.2 | 35 | 35 |
| ACS-SR-06085 | 2017472 | 6 | 85 | 6 | 50 | 60 | 15 / 5 | 55 / 65 | 35 | 10 | 5 | 4.5 / 4.2 | 35 | 35 |
| ACS-SR-06100 | 2017473 | 6 | 100 | 6 | 55 | 65 | 25 / 15 | 60 / 70 | 45 | 10 | 5 | 4.5 / 4.2 | 35 | 35 |
| ACS-SR-08060 | 2017410 | 8 | 60 | 8 | 40 | - | 5 / - | 45 / - | 25 | 13 | 15 | 6.5 / 7.0 | 35 | 35 |
| ACS-SR-08075 | 2017411 | 8 | 75 | 8 | 40 | 50 | 15 / 5 | 45 / 55 | 40 | 13 | 15 | 6.5 / 7.0 | 35 | 35 |
| ACS-SR-08095 | 2017412 | 8 | 95 | 8 | 50 | 70 | 25 / 5 | 55 / 75 | 45 | 13 | 15 | 7.8 / 7.0 | 35 | 35 |
| ACS-SR-08115 | 2017413 | 8 | 115 | 8 | 50 | 80 | 45 / 15 | 55 / 85 | 55 | 13 | 15 | 7.8 / 7.0 | 35 | 35 |
| ACS-SR-10075 | 2017420 | 10 | 75 | 10 | 50 | 55 | 5 / - | 60 / 65 | 40 | 17 | 25 | 9.2 / 13.1 | 50 | 50 |
| ACS-SR-10095 | 2017421 | 10 | 95 | 10 | 50 | 60 | 25 / 15 | 60 / 70 | 45 | 17 | 25 | 9.2 / 13.1 | 50 | 50 |
| ACS-SR-10115 | 2017422 | 10 | 115 | 10 | 50 | 90 | 45 / 5 | 60 / 100 | 55 | 17 | 25 | 9.2 / 13.1 | 50 | 45 |
| ACS-SR-10130 | 2017423 | 10 | 130 | 10 | 60 | 90 | 50 / 20 | 70 / 100 | 65 | 17 | 25 | 10.3 / 13.1 | 50 | 40 |
| ACS-SR-10150 | 2017424 | 10 | 150 | 10 | 70 | 90 | 60 / 40 | 80 / 100 | 80 | 17 | 25 | 11.5 / 13.1 | 50 | 40 |
| ACS-SR-10170 | 2017425 | 10 | 170 | 10 | 70 | 90 | 80 / 60 | 80 / 100 | 95 | 17 | 25 | 11.5 / 13.1 | 50 | 40 |
| ACS-SR-12095 | 2017430 | 12 | 95 | 12 | 65 | 75 | 10 / - | 75 / 85 | 35 | 19 | 50 | 12.8 / 17.0 | 75 | 65 |
| ACS-SR-12115 | 2017431 | 12 | 115 | 12 | 65 | 80 | 30 / 15 | 75 / 85 | 55 | 19 | 50 | 12.8 / 17.0 | 75 | 65 |
| ACS-SR-12130 | 2017432 | 12 | 130 | 12 | 70 | 100 | 40 / 10 | 80 / 85 | 65 | 19 | 50 | 12.8 / 17.0 | 75 | 65 |
| ACS-SR-12150 | 2017433 | 12 | 150 | 12 | 70 | 100 | 60 / 25 | 80 / 110 | 80 | 19 | 50 | 12.8 / 17.0 | 75 | 65 |
| ACS-SR-12175 | 2017434 | 12 | 175 | 12 | 90 | 100 | 65 / 55 | 100 / 110 | 90 | 19 | 50 | 16.8 / 16.9 | 75 | 65 |
| ACS-SR-12205 | 2017435 | 12 | 205 | 12 | 90 | 100 | 90 / 80 | 100 / 110 | 95 | 19 | 50 | 16.8 / 16.9 | 75 | 65 |
| ACS-SR-12225 | 2017435 | 12 | 225 | 12 | 90 | 100 | 110 / 100 | 100 / 110 | 100 | 19 | 50 | 16.8 / 16.9 | 75 | 65 |
| ACS-SR-16105 | 2017440 | 16 | 105 | 16 | 75 | - | 10 / - | 85 / - | 50 | 24 | 80 | 17.5 / 32.5 | 90 | 80 |
| ACS-SR-16125 | 2017441 | 16 | 125 | 16 | 75 | 90 | 25 / 10 | 85 / 100 | 60 | 24 | 80 | 17.5 / 32.5 | 90 | 80 |
| ACS-SR-16145 | 2017442 | 16 | 145 | 16 | 75 | 100 | 45 / 25 | 85 / 110 | 75 | 24 | 80 | 17.5 / 32.5 | 90 | 80 |
| ACS-SR-16180 | 2017443 | 16 | 180 | 16 | 100 | 135 | 60 / 20 | 110 / 145 | 90 | 24 | 80 | 23.5 / 32.5 |
AHS-AS Wedge Anchors – Technical Specifications
Product :
Ultimate Strength Stud Anchor
Class :
Elite
Material Grade :
Alloy Steel, Zinc Plated
Description
Ultra high-load mechanical anchor for critical structural and safety-related fixings.
Key Features
High-tensile alloy steel core; robust expansion clip; deep embedment for high loads; vibration-resistant design; suitable for heavy machinery bases.
Applications
• Façade support brackets & façade sub-frame fixings
• Structural steel base plates
• Handrails, guardrails, balustrades
• Equipment foundations & machine base frames
• MEP supports: HVAC units, AHU frames, cable trays, pipe racks
| Code | Art No. | Anchor Dia mm |
Anchor Length mm |
Drill Hole Dia mm |
Min Embed Length Hnom1 (mm) |
Max Embed Length Hnom2 (mm) |
Max T.Fix Hnom1 / Hnom2 (mm) |
Min Drill Hole Depth Hnom1 / Hnom2 (mm) |
Std. Thread Length mm |
Nut Dia (AF/SW) mm |
Recommended Torque Nm |
Safe Working Load (Uncracked C20/25) Tensile / Shear (kN) |
Safe Working Load (Cracked C20/25) Tensile / Shear (kN) |
Safe Distance Between Anchors mm |
Safe Edge Distance mm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AHS-AS-08075 | 2017511 | 8 | 75 | 8 | 50 | 55 | 15 / 10 | 55 / 60 | 40 | 13 | 20 | 7.0 / 8.0 | 4.0 / 8.0 | 35 | 40 |
| AHS-AS-08095 | 2017512 | 8 | 95 | 8 | 50 | 55 | 30 / 25 | 55 / 60 | 45 | 13 | 20 | 7.0 / 8.0 | 4.0 / 8.0 | 35 | 40 |
| AHS-AS-08115 | 2017513 | 8 | 115 | 8 | 55 | 100 | 50 / 5 | 60 / 105 | 60 | 13 | 20 | 7.0 / 8.0 | 4.0 / 8.0 | 35 | 40 |
| AHS-AS-10090 | 2017520 | 10 | 90 | 10 | 50 | 70 | 25 / 10 | 60 / 80 | 45 | 17 | 45 | 11.0 / 13.5 | 7.5 / 13.5 | 50 | 45 |
| AHS-AS-10100 | 2017521 | 10 | 100 | 10 | 50 | 70 | 35 / 20 | 60 / 80 | 50 | 17 | 45 | 11.0 / 13.5 | 7.5 / 13.5 | 50 | 45 |
| AHS-AS-10120 | 2017522 | 10 | 120 | 10 | 50 | 70 | 50 / 30 | 60 / 80 | 60 | 17 | 45 | 11.0 / 13.5 | 7.5 / 13.5 | 50 | 45 |
| AHS-AS-10130 | 2017523 | 10 | 130 | 10 | 50 | 100 | 60 / 10 | 60 / 110 | 70 | 17 | 45 | 11.0 / 13.5 | 7.5 / 13.5 | 50 | 45 |
| AHS-AS-10150 | 2017524 | 10 | 150 | 10 | 50 | 100 | 80 / 30 | 60 / 110 | 80 | 17 | 45 | 11.0 / 13.5 | 7.5 / 13.5 | 50 | 45 |
| AHS-AS-10200 | 2017525 | 10 | 200 | 10 | 50 | 100 | 130 / 80 | 60 / 110 | 100 | 17 | 45 | 11.0 / 13.5 | 7.5 / 13.5 | 50 | 45 |
| AHS-AS-12100 | 2017535 | 12 | 100 | 12 | 60 | 75 | 20 / 5 | 70 / 85 | 50 | 19 | 60 | 13.5 / 19.5 | 9.5 / 19.5 | 60 | 55 |
| AHS-AS-12120 | 2017536 | 12 | 120 | 12 | 60 | 80 | 35 / 20 | 70 / 90 | 60 | 19 | 60 | 13.5 / 19.5 | 9.5 / 19.5 | 60 | 55 |
| AHS-AS-12130 | 2017537 | 12 | 130 | 12 | 60 | 80 | 45 / 25 | 70 / 90 | 70 | 19 | 60 | 13.5 / 19.5 | 9.5 / 19.5 | 60 | 55 |
| AHS-AS-12150 | 2017538 | 12 | 150 | 12 | 60 | 80 | 65 / 30 | 70 / 90 | 80 | 19 | 60 | 13.5 / 19.5 | 9.5 / 19.5 | 60 | 55 |
| AHS-AS-12170 | 2017539 | 12 | 170 | 12 | 60 | 135 | 90 / 15 | 70 / 145 | 90 | 19 | 60 | 13.5 / 19.5 | 9.5 / 19.5 | 60 | 55 |
| AHS-AS-12230 | 2017540 | 12 | 230 | 12 | 60 | 135 | 150 / 75 | 70 / 145 | 95 | 19 | 60 | 13.5 / 19.5 | 9.5 / 19.5 | 60 | 55 |
| AHS-AS-12260 | 2017541 | 12 | 260 | 12 | 60 | 135 | 180 / 100 | 70 / 145 | 100 | 19 | 60 | 13.5 / 19.5 | 9.5 / 19.5 | 60 | 55 |
| AHS-AS-12300 | 2017542 | 12 | 300 | 12 | 60 | 135 | 220 / 140 | 70 / 145 | 100 | 19 | 60 | 13.5 / 19.5 | 9.5 / 19.5 | 60 | 55 |
| AHS-AS-16150 | 2017550 | 16 | 150 | 16 | 80 | 100 | 50 / 30 | 90 / 110 | 80 | 24 | 110 | 18.5 / 33.0 | 13.0 / 33.0 | 80 | 75 |
| AHS-AS-16170 | 2017551 | 16 | 170 | 16 | 80 | 100 | 70 / 50 | 90 / 110 | 90 | 24 | 110 | 18.5 / 33.0 | 13.0 / 33.0 | 80 | 75 |
| AHS-AS-16220 | 2017552 | 16 | 220 | 16 | 80 | 175 | 120 / 25 | 90 / 185 | 95 | 24 | 110 | 18.5 / 33.0 | 13.0 / 33.0 | 80 | 75 |
| AHS-AS-16260 | 2017553 | 16 | 260 | 16 | 80 | 175 | 150 / 90 | 90 / 185 | 100 | 24 | 110 | 18.5 / 32.0 | 13.0 / 33.0 | 80 | 75 |
| AHS-AS-16300 | 2017554 | 16 | 300 | 16 | 80 | 175 | 200 / 80 | 90 / 185 | 100 | 24 | 110 | 18.5 / 32.0 | 13.0 / 33.0 | 80 | 75 |
| AHS-AS-20170 | 2017560 | 20 | 170 | 20 | 120 | 120 | 30 / 30 | 130 / 130 | 85 | 30 | 240 | 32.0 / 53.5 | 17.0 / 48.5 | 120 | 110 |
| AHS-AS-20200 | 2017561 | 20 | 200 | 20 | 120 | 120 | 60 / 60 | 130 / 130 | 90 | 30 | 240 | 32.0 / 53.5 | 17.0 / 48.5 | 120 | 110 |
| AHS-AS-20260 | 2017562 | 20 | 260 | 20 | 120 | 200 | 120 / 40 | 130 / 130 | 100 | 30 | 240 | 32.0 / 53.5 | 17.0 / 48.5 | 120 | 110 |
| AHS-AS-24200 | 2017570 | 24 | 200 | 24 | 150 | 150 | 30 / 30 | 160 / 160 | 90 | 36 | 300 | 33.5 / 55.0 | 19.0 / 50.0 | 180 | 170 |
| AHS-AS-24230 | 2017571 | 24 | 230 | 24 | 150 | 170 | 60 / 40 | 160 / 180 | 95 | 36 | 300 | 33.5 / 55.0 | 19.0 / 50.0 | 180 | 170 |
AHS-SR Wedge Anchors – Technical Specifications
Product :
Ultimate Strength Stud Anchor
Class :
Elite
Material Grade :
Stainless Steel 316
Description
Ultimate-strength stud anchor with premium corrosion resistance for severe environments.
Key Features
SS316 stainless steel; extreme load class; long service life; stable torque- controlled expansion; suitable for coastal & industrial zones.
Applications
• Façade support brackets & façade sub-frame fixings
• Structural steel base plates
• Handrails, guardrails, balustrades
• Equipment foundations & machine base frames
• MEP supports: HVAC units, AHU frames, cable trays, pipe racks
| Code | Art No. | Anchor Dia mm |
Anchor Length mm |
Drill Hole Dia mm |
Min Embed Length Hnom1 (mm) |
Max Embed Length Hnom2 (mm) |
Max T.Fix Hnom1 / Hnom2 (mm) |
Min Drill Hole Depth Hnom1 / Hnom2 (mm) |
Std. Thread Length mm |
Nut Dia (AF/SW) mm |
Recommended Torque Nm |
Safe Working Load (Uncracked C20/25) Tensile / Shear (kN) |
Safe Working Load (Cracked C20/25) Tensile / Shear (kN) |
Safe Distance Between Anchors mm |
Safe Edge Distance mm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AHS-SR-08075 | 2017616 | 8 | 75 | 8 | 50 | 55 | 15 / 10 | 55 / 60 | 40 | 13 | 20 | 8.0 / 9.0 | 4.5 / 8.5 | 35 | 40 |
| AHS-SR-08095 | 2017617 | 8 | 95 | 8 | 50 | 55 | 30 / 25 | 55 / 60 | 45 | 13 | 20 | 8.0 / 9.0 | 4.5 / 8.5 | 35 | 40 |
| AHS-SR-08115 | 2017618 | 8 | 115 | 8 | 55 | 100 | 50 / 5 | 60 / 105 | 60 | 13 | 20 | 8.0 / 9.0 | 4.5 / 8.5 | 35 | 40 |
| AHS-SR-10090 | 2017625 | 10 | 90 | 10 | 50 | 70 | 25 / 10 | 60 / 80 | 45 | 17 | 45 | 12.0 / 14.5 | 8.0 / 14.0 | 50 | 45 |
| AHS-SR-10100 | 2017626 | 10 | 100 | 10 | 50 | 70 | 35 / 20 | 60 / 80 | 50 | 17 | 45 | 12.0 / 14.5 | 8.0 / 14.0 | 50 | 45 |
| AHS-SR-10120 | 2017627 | 10 | 120 | 10 | 50 | 70 | 50 / 30 | 60 / 80 | 60 | 17 | 45 | 12.0 / 14.5 | 8.0 / 14.0 | 50 | 45 |
| AHS-SR-10130 | 2017628 | 10 | 130 | 10 | 50 | 100 | 60 / 10 | 60 / 110 | 70 | 17 | 45 | 12.0 / 14.5 | 8.0 / 14.0 | 50 | 45 |
| AHS-SR-10150 | 2017629 | 10 | 150 | 10 | 50 | 100 | 80 / 30 | 60 / 110 | 80 | 17 | 45 | 12.0 / 14.5 | 8.0 / 14.0 | 50 | 45 |
| AHS-SR-12100 | 2017635 | 12 | 100 | 12 | 60 | 75 | 20 / 5 | 70 / 85 | 50 | 19 | 60 | 14.0 / 21.5 | 10.0 / 21.0 | 60 | 55 |
| AHS-SR-12120 | 2017636 | 12 | 120 | 12 | 60 | 80 | 35 / 20 | 70 / 90 | 60 | 19 | 60 | 14.0 / 21.5 | 10.0 / 21.0 | 60 | 55 |
| AHS-SR-12130 | 2017637 | 12 | 130 | 12 | 60 | 80 | 45 / 25 | 70 / 90 | 70 | 19 | 60 | 14.0 / 21.5 | 10.0 / 21.0 | 60 | 55 |
| AHS-SR-12150 | 2017638 | 12 | 150 | 12 | 60 | 80 | 65 / 30 | 70 / 90 | 80 | 19 | 60 | 14.0 / 21.5 | 10.0 / 21.0 | 60 | 55 |
| AHS-SR-12170 | 2017639 | 12 | 170 | 12 | 60 | 135 | 90 / 15 | 70 / 145 | 90 | 19 | 60 | 14.0 / 21.5 | 10.0 / 21.0 | 60 | 55 |
| AHS-SR-12230 | 2017640 | 12 | 230 | 12 | 60 | 135 | 150 / 75 | 70 / 145 | 95 | 19 | 60 | 14.0 / 21.5 | 10.0 / 21.0 | 60 | 55 |
| AHS-SR-16150 | 2017653 | 16 | 150 | 16 | 80 | 100 | 50 / 30 | 90 / 110 | 80 | 24 | 110 | 19.5 / 37.0 | 13.5 / 36.5 | 80 | 75 |
| AHS-SR-16170 | 2017654 | 16 | 170 | 16 | 80 | 100 | 70 / 50 | 90 / 110 | 90 | 24 | 110 | 19.5 / 37.0 | 13.5 / 36.5 | 80 | 75 |
| AHS-SR-16220 | 2017655 | 16 | 220 | 16 | 80 | 175 | 120 / 25 | 90 / 185 | 95 | 24 | 110 | 19.5 / 37.0 | 13.5 / 36.5 | 80 | 75 |
| AHS-SR-16260 | 2017656 | 16 | 260 | 16 | 80 | 175 | 150 / 90 | 90 / 185 | 100 | 24 | 110 | 19.5 / 37.0 | 13.5 / 36.5 | 80 | 75 |
| AHS-SR-20170 | 2017661 | 20 | 170 | 20 | 120 | 120 | 30 / 30 | 130 / 130 | 85 | 30 | 240 | 33.0 / 55.5 | 17.5 / 53.5 | 120 | 110 |
| AHS-SR-20200 | 2017662 | 20 | 200 | 20 | 120 | 120 | 60 / 60 | 130 / 130 | 90 | 30 | 240 | 33.0 / 55.5 | 17.5 / 53.5 | 120 | 110 |
| AHS-SR-24200 | 2017665 | 24 | 200 | 24 | 150 | 150 | 30 / 30 | 160 / 160 | 90 | 36 | 300 | 34.0 / 64.0 | 19.5 / 57.5 | 180 | 170 |
| AHS-SR-24230 | 2017666 | 24 | 230 | 24 | 150 | 170 | 60 / 40 | 160 / 180 | 95 | 36 | 300 | 34.0 / 64.0 | 19.5 / 57.5 | 180 | 170 |
AHS-HCR Wedge Anchors – Technical Specifications
Product :
High Corrosion Resistant Stud Anchor
Class :
Elite
Material Grade :
HCR Coated / SS Grade
Description
High corrosion resistant stud anchor for aggressive industrial and marine environments.
Key Features
Enhanced corrosion protection; long service life; high mechanical load capacity; suitable for chemical exposure zones; reduced maintenance lifecycle cost.
Applications
• Façade support brackets & façade sub-frame fixings
• Structural steel base plates
• Handrails, guardrails, balustrades
• Equipment foundations & machine base frames
• MEP supports: HVAC units, AHU frames, cable trays, pipe racks
| Code | Art No. | Anchor Dia mm |
Anchor Length mm |
Drill Hole Dia mm |
Min Embed Length Hnom1 (mm) |
Max Embed Length Hnom2 (mm) |
Max T.Fix Hnom1 / Hnom2 (mm) |
Min Drill Hole Depth Hnom1 / Hnom2 (mm) |
Std. Thread Length mm |
Nut Dia (SW) mm |
Recommended Torque Nm |
Safe Working Load (Uncracked/Cracked C20/25) Tensile / Shear (kN) |
Safe Distance Between Anchors mm |
Safe Edge Distance mm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AHS-HCR-08100 | 2017710 | 8 | 100 | 8 | 50 | 70 | 35 / 10 | 60 / 80 | 50 | 13 | 20 | 7.5 / 8.5 | 60 | 60 |
| AHS-HCR-10130 | 2017720 | 10 | 130 | 10 | 60 | 80 | 60 / 30 | 70 / 90 | 60 | 17 | 40 | 11.5 / 13.8 | 70 | 70 |
| AHS-HCR-12150 | 2017130 | 12 | 150 | 12 | 70 | 100 | 65 / 30 | 80 / 110 | 70 | 19 | 60 | 13.7 / 20.0 | 70 | 70 |
| AHS-HCR-16150 | 2017140 | 16 | 150 | 16 | 80 | 110 | 50 / 20 | 90 / 120 | 75 | 24 | 80 | 19.0 / 34.0 | 80 | 90 |
Anchor Fastening Solutions in Major Construction & Infrastructure Projects
Central Vista
New Parliament Building
Statue of unity
Kewadia
BJP Headquarters
Ddu marg
FAQs – Wedge Anchors Fasteners
Find answers to common questions about Wedge Anchors including installation, applications, load capacity, and industrial usage.
Wedge anchors are most commonly applied to solid concrete, but may be applied to masonry or stone where suitable.
Yes, even though wedge anchors are best in solid concrete we can give special attention and suggestions to masonry.
Yes! Our engineer will give instructions, trouble shooting and advice as to how to install and perform optimally.
We do have contractor and wholesale rates on large-scale projects and business.
Our Trusted Industrial Partners & Clients
Know More
