Stud Anchors Manufacturers in Sonipat
Stud Anchors

Stud Anchors Manufacturers in India

Stud Anchors Manufacturers in India
Catalogue

Stud anchors are crucial in concrete, drywall and industrial construction when it comes to heavy-duty and reliable fasteners. Being one of teh top Stud Anchors Manufacturers in India offers high quality stud anchor fasteners that are strength, durable and accurate in quality. Stud anchors are used to stabilize and add security to every installation whether it is anchoring elements in concrete or fastening fixtures in drywall.

We don’t deal in simple stud anchors instead performance anchors. You may require stud anchor bolts, stud anchor screws or stud anchor chains, but in any case AFT will provide the best solutions based on the highest industrial standards. Our stud anchors are available with high loading, vibration, and wear capacity, which makes them reliable to the contractors, engineers, and manufactures in India. With our products, you are making an investment in fasteners that would ensure long-term reliability and safety to any project.

What are the advantages of Stud Anchors?

Stud Anchors are high load bearing, have fast installation capability and reliable performance. They are designed to minimize installation errors, hold firmly and remain stable when used in safety critical applications even with vibration or heavy loads.

Additional Benefits:

  • Ideal in the mounting of machinery and structural steel.
  • Reduces relaxation with time.
  • Sustains high and sustained loads.
  • Less on-site time of installation.
  • Provides neat and high standards outsourcing.

Stud Anchors Suppliers & Dealers in India – Types and Features

As a leading Stud Anchors Suppliers in India , we supply several types of stud fasteners to suit various project requirements.

For Concrete Applications:

Fully threaded anchors include threads on the full depth of the body to provide flexibility in installation, whereas partial threaded anchors include threads on part of the rod to ensure that they do not embed too shallow. Wedge anchors (stud anchors) are provided with a threaded rod, expansion sleeve, washer and nut to ensure firm attachment. Chemical anchors (adhesive anchors) involve resin to lock in the anchor in concrete, and weld studs (headed anchors) are welded to steel surfaces then poured over with concrete to permanently attach.

For Drywall and Hollow Walls:

Self-drilling anchors do not need to be pre-drilled and screw directly into drywall. E-Z Ancor Stud Solver is perfect when it comes to hollow doors or drywall. Toggle bolts (Toggle anchors) push back behind the walls and hold heavy items firmly and hollow-wall anchors (molly bolts) are used to push out flanges of the back of the wall.

Our Stud Anchors Dealers in India have earned the trust of our clients because of durable and high quality materials. We have steel, stainless steel and zinc-coated stud anchors and stud bolt to fit all environments. Installation is done properly to achieve maximum holding power: drill and clean concrete anchors hole, place the stud bolt in and tighten the nut to enlarge the anchor. With dry wall anchors, self drilling screws or toggle bolts are used and care should be taken not to over tighten.

Our stud anchor is available in various sizes to suit a variety of load capacity, and it is always accurate and has a durable performance in any use.

Our Dealer in India serves a diverse range of sectors and projects. Stud anchors are used for:

  • Concrete: This includes equipments like steel columns, beams, equipment mounts, handrails, and facade brackets, whether they're structural or not.
  • Drywall/Hollow Walls: It contains Hanging shelves, mirrors, fixtures, and household items.
  • Machinery and Equipment Anchoring: Protects heavy machinery and industrial equipment.
  • Structural Steel Connections: Fastening steel components in construction and industrial projects.
  • Industrial Assembly Lines and Factories: Secure production equipment and assembly lines.
  • Bridge Bearing Plates and Pre-cast Concrete Anchoring: Ensuring stability and load distribution in civil engineering projects.
  • Seismic Retrofit Applications: Making buildings stronger, so they can survive earthquakes.
  • Industrial Applications: Ceramic fiber blanket lining, mechanical seal seats, and gearbox frame installations.

Our stud anchor bolts, stud anchor screws, and stud anchor chains ensure that all installations will be of the greatest strength, stability and safety.

Stud Anchors Wholesalers in India – Bulk Supply and Pricing

Being one of th top Stud Anchors Wholesalers in India we provides competitive stud anchor price for bulk orders. Our expedited shipping, wide stock, and quality assurance allow the contractors, manufacturers, and retailers to count on us. Starting with general stud anchor fasteners and moving up to high load specialty anchors, we offer products which fit to precise project requirements.

Why Choose AFT Stud Anchors

  • Premium Quality – Manufactured to meet rigorous industrial standards.
  • Wide Variety – Stud fasteners are manufactured for use in concrete, drywall, and hollow-wall structure are available.
  • Durable Materials – Steel, stainless steel, and zinc-coated options for long-lasting performance.
  • Expert Guidance – Our team can assist you in choosing the correct stud anchor bolt, screw, or chain.
  • Reliable Delivery – Safe, fast, and bulk-ready shipping across India and India.

Get Your Stud Anchors Today!

Make sure that all the projects are strong and dependable using AFT stud anchors. Call us now to get a personal quote, a bulk order, or to ask us about our many products.

Our Products Range
AHS-HCR Manufacturers in Sonipat
AHS-HCR
ACS-R Manufacturers in Sonipat
ACS-R
ACS-SR Manufacturers in Sonipat
ACS-SR
AHS-AS Manufacturers in Sonipat
AHS-AS
AHS-SR Manufacturers in Sonipat
AHS-SR
ACS-H Manufacturers in Sonipat
ACS-H
Product :
Concrete Stud Anchor
Class :
Standard
Material Grade :
Carbon Steel, Zinc Plated
Description
Torque-controlled mechanical stud anchor for reliable static load transfer in concrete and dense substrates.
Key Features
Cold-formed body; predictable torque setting; consistent radial expansion; quick through-fix installation; cost-effective solution.
Applications

• Canopy structures & sunshade frames

• Signage frames & advertising hoardings

• Industrial racking systems

• Safety barriers & crash barriers

• Seismic restraint connections for services

• Staircase stringer supports

• Retrofits and strengthening works

Code Art No. Anchor Dia mm Anchor Length mm Drill Hole Dia mm Minima Embed Length Hnom1 mm Maxima Embed Length Hnom2 mm Maxima T.Fix Hnom1 / Hnom2 mm Minima Drill Hole Depth Hnom1 / Hnom2 mm Std. Thread Length mm Nut Dia (SW) mm Recommended Torque Nm Recommended Safe Working Load (Uncracked Concrete C20/25) Tensile (kN) / Shear (kN) Safe Distance Between Anchors mm Safe Edge Distance mm
ACS-H-08075 2017111 8 75 8 40 50 20 / 10 45 / 55 35 13 15 5.1 / 5.2 60 60
ACS-H-10090 2017122 10 90 10 50 60 25 / 15 60 / 70 40 17 30 7.2 / 8.8 70 70
ACS-H-10100 2017123 10 100 10 50 60 35 / 25 60 / 70 45 17 30 7.2 / 8.8 70 70
ACS-H-12100 2017136 12 100 12 60 75 20 / 5 70 / 85 35 19 50 10.2 / 13.9 80 90
ACS-H-12110 2017144 12 110 12 60 75 30 / 15 70 / 85 45 19 50 10.2 / 13.9 80 90
ACS-H-12120 2017137 12 120 12 60 75 40 / 25 70 / 85 55 19 50 10.2 / 13.9 80 90
ACS-H-12150 2017139 12 150 12 60 75 70 / 55 70 / 85 85 19 50 10.2 / 13.9 80 90
ACS-H-16120 2017151 16 120 16 80 95 15 / -- 90 / 105 65 24 100 15.5 / 26.0 110 110
ACS-H-16140 2017152 16 140 16 80 95 35 / 20 90 / 105 75 24 100 15.5 / 26.0 110 110

NOTE :

*All load tolerances can be achieved in accordance with the specified dimensions mentioned above.
*Any modifications to the product portfolio can be implemented without prior notification to the stakeholders.
*Special lengths can be provided upon request, subject to a minimum order quantity requirement.
*KN= Kilonewton (1KN = 100Kgs.)

Product :
Concrete Stud Anchor
Class :
Premium
Material Grade :
Stainless Steel 304
Description
Corrosion-resistant stud anchor for medium-load exterior and wet-area concrete fixings.
Key Features
Torque-controlled expansion; SS304 corrosion resistance; cold-forged threads; stable long-term performance; suitable for semi-exposed zones.
Applications

• Canopy structures & sunshade frames

• Signage frames & advertising hoardings

• Industrial racking systems

• Safety barriers & crash barriers

• Seismic restraint connections for services

• Staircase stringer supports

• Retrofits and strengthening works

CODE ART NO. ANCHOR DIA
mm		 ANCHOR LENGTH
mm		 DRILL HOLE DIA
mm		 MINIMUM EMBED LENGTH (Hnom1)
mm		 MAXIMUM EMBED LENGTH (Hnom2)
mm		 MAXIMUM T.FIX
Hnom1 / Hnom2
mm		 MINIMUM DRILL HOLE DEPTH
Hnom1 / Hnom2
mm		 STD. THREAD LENGTH
mm		 NUT DIA (SW)
mm		 RECOMMENDED TORQUE
Nm		 RECOMMENDED SAFE WORKING LOAD (Uncracked Concrete C20/25)
Tensile / Shear (kN)		 SAFE DISTANCE BETWEEN ANCHORS
mm		 SAFE EDGE DISTANCE
mm
ACS-R-08075 2017311 8 75 8 40 50 20 / 10 45 / 55 35 13 15 5.1 / 5.2 60 60
ACS-R-10090 2017321 10 90 10 50 60 20 / 15 60 / 70 40 17 30 7.2 / 9.2 70 70
ACS-R-10100 2017322 10 100 10 50 60 30 / 25 60 / 70 50 17 30 7.2 / 9.2 70 70
ACS-R-10130 2017323 10 130 10 60 90 50 / 20 70 / 100 65 17 30 7.2 / 9.2 70 70
ACS-R-12100 2017335 12 100 12 60 75 15 / 5 70 / 85 35 19 50 10.2 / 13.3 80 90
ACS-R-12120 2017336 12 120 12 60 75 35 / 25 70 / 85 55 19 50 10.2 / 13.3 80 90
ACS-R-12130 2017337 12 130 12 70 90 40 / 10 80 / 100 65 19 50 10.2 / 13.3 80 90
ACS-R-12150 2017338 12 150 12 60 75 65 / 55 70 / 85 85 19 50 10.2 / 13.3 80 90
ACS-R-16140 2017353 16 140 16 80 95 35 / 20 90 / 105 75 24 100 13.7 / 24.9 110 110
Product :
High Strength Stud Anchor
Class :
Elite
Material Grade :
Stainless Steel 316
Description
High-load stud anchor for aggressive and coastal environments requiring corrosion resistance.
Key Features
High static & dynamic capacity; SS316 marine-grade durability; stable expansion geometry; long service life; suitable for harsh outdoor zones.
Applications

• Façade support brackets & façade sub-frame fixings

• Structural steel base plates

• Handrails, guardrails, balustrades

• Equipment foundations & machine base frames

• MEP supports: HVAC units, AHU frames, cable trays, pipe racks

Code Art No. Anchor Dia
mm		 Anchor Length
mm		 Drill Hole Dia
mm		 Min Embed Length
Hnom1 (mm)		 Max Embed Length
Hnom2 (mm)		 Max T.Fix
Hnom1 / Hnom2 (mm)		 Min Drill Hole Depth
Hnom1 / Hnom2 (mm)		 Std. Thread Length
mm		 Nut Dia (SW)
mm		 Recommended Torque
Nm		 Safe Working Load (C20/25)
Tensile / Shear (kN)		 Safe Distance Between Anchors
mm		 Safe Edge Distance
mm
ACS-SR-06050 2017470 6 50 6 30 35 5 / - 35 / 40 20 10 5 3.0 / 4.2 35 35
ACS-SR-06065 2017471 6 65 6 35 40 10 / 5 40 / 45 30 10 5 3.8 / 4.2 35 35
ACS-SR-06085 2017472 6 85 6 50 60 15 / 5 55 / 65 35 10 5 4.5 / 4.2 35 35
ACS-SR-06100 2017473 6 100 6 55 65 25 / 15 60 / 70 45 10 5 4.5 / 4.2 35 35
ACS-SR-08060 2017410 8 60 8 40 - 5 / - 45 / - 25 13 15 6.5 / 7.0 35 35
ACS-SR-08075 2017411 8 75 8 40 50 15 / 5 45 / 55 40 13 15 6.5 / 7.0 35 35
ACS-SR-08095 2017412 8 95 8 50 70 25 / 5 55 / 75 45 13 15 7.8 / 7.0 35 35
ACS-SR-08115 2017413 8 115 8 50 80 45 / 15 55 / 85 55 13 15 7.8 / 7.0 35 35
ACS-SR-10075 2017420 10 75 10 50 55 5 / - 60 / 65 40 17 25 9.2 / 13.1 50 50
ACS-SR-10095 2017421 10 95 10 50 60 25 / 15 60 / 70 45 17 25 9.2 / 13.1 50 50
ACS-SR-10115 2017422 10 115 10 50 90 45 / 5 60 / 100 55 17 25 9.2 / 13.1 50 45
ACS-SR-10130 2017423 10 130 10 60 90 50 / 20 70 / 100 65 17 25 10.3 / 13.1 50 40
ACS-SR-10150 2017424 10 150 10 70 90 60 / 40 80 / 100 80 17 25 11.5 / 13.1 50 40
ACS-SR-10170 2017425 10 170 10 70 90 80 / 60 80 / 100 95 17 25 11.5 / 13.1 50 40
ACS-SR-12095 2017430 12 95 12 65 75 10 / - 75 / 85 35 19 50 12.8 / 17.0 75 65
ACS-SR-12115 2017431 12 115 12 65 80 30 / 15 75 / 85 55 19 50 12.8 / 17.0 75 65
ACS-SR-12130 2017432 12 130 12 70 100 40 / 10 80 / 85 65 19 50 12.8 / 17.0 75 65
ACS-SR-12150 2017433 12 150 12 70 100 60 / 25 80 / 110 80 19 50 12.8 / 17.0 75 65
ACS-SR-12175 2017434 12 175 12 90 100 65 / 55 100 / 110 90 19 50 16.8 / 16.9 75 65
ACS-SR-12205 2017435 12 205 12 90 100 90 / 80 100 / 110 95 19 50 16.8 / 16.9 75 65
ACS-SR-12225 2017435 12 225 12 90 100 110 / 100 100 / 110 100 19 50 16.8 / 16.9 75 65
ACS-SR-16105 2017440 16 105 16 75 - 10 / - 85 / - 50 24 80 17.5 / 32.5 90 80
ACS-SR-16125 2017441 16 125 16 75 90 25 / 10 85 / 100 60 24 80 17.5 / 32.5 90 80
ACS-SR-16145 2017442 16 145 16 75 100 45 / 25 85 / 110 75 24 80 17.5 / 32.5 90 80
ACS-SR-16180 2017443 16 180 16 100 135 60 / 20 110 / 145 90 24 80 23.5 / 32.5
Product :
Ultimate Strength Stud Anchor
Class :
Elite
Material Grade :
Alloy Steel, Zinc Plated
Description
Ultra high-load mechanical anchor for critical structural and safety-related fixings.
Key Features
High-tensile alloy steel core; robust expansion clip; deep embedment for high loads; vibration-resistant design; suitable for heavy machinery bases.
Applications

• Façade support brackets & façade sub-frame fixings

• Structural steel base plates

• Handrails, guardrails, balustrades

• Equipment foundations & machine base frames

• MEP supports: HVAC units, AHU frames, cable trays, pipe racks

Code Art No. Anchor Dia
mm		 Anchor Length
mm		 Drill Hole Dia
mm		 Min Embed Length
Hnom1 (mm)		 Max Embed Length
Hnom2 (mm)		 Max T.Fix
Hnom1 / Hnom2 (mm)		 Min Drill Hole Depth
Hnom1 / Hnom2 (mm)		 Std. Thread Length
mm		 Nut Dia (AF/SW)
mm		 Recommended Torque
Nm		 Safe Working Load (Uncracked C20/25)
Tensile / Shear (kN)		 Safe Working Load (Cracked C20/25)
Tensile / Shear (kN)		 Safe Distance Between Anchors
mm		 Safe Edge Distance
mm
AHS-AS-08075 2017511 8 75 8 50 55 15 / 10 55 / 60 40 13 20 7.0 / 8.0 4.0 / 8.0 35 40
AHS-AS-08095 2017512 8 95 8 50 55 30 / 25 55 / 60 45 13 20 7.0 / 8.0 4.0 / 8.0 35 40
AHS-AS-08115 2017513 8 115 8 55 100 50 / 5 60 / 105 60 13 20 7.0 / 8.0 4.0 / 8.0 35 40
AHS-AS-10090 2017520 10 90 10 50 70 25 / 10 60 / 80 45 17 45 11.0 / 13.5 7.5 / 13.5 50 45
AHS-AS-10100 2017521 10 100 10 50 70 35 / 20 60 / 80 50 17 45 11.0 / 13.5 7.5 / 13.5 50 45
AHS-AS-10120 2017522 10 120 10 50 70 50 / 30 60 / 80 60 17 45 11.0 / 13.5 7.5 / 13.5 50 45
AHS-AS-10130 2017523 10 130 10 50 100 60 / 10 60 / 110 70 17 45 11.0 / 13.5 7.5 / 13.5 50 45
AHS-AS-10150 2017524 10 150 10 50 100 80 / 30 60 / 110 80 17 45 11.0 / 13.5 7.5 / 13.5 50 45
AHS-AS-10200 2017525 10 200 10 50 100 130 / 80 60 / 110 100 17 45 11.0 / 13.5 7.5 / 13.5 50 45
AHS-AS-12100 2017535 12 100 12 60 75 20 / 5 70 / 85 50 19 60 13.5 / 19.5 9.5 / 19.5 60 55
AHS-AS-12120 2017536 12 120 12 60 80 35 / 20 70 / 90 60 19 60 13.5 / 19.5 9.5 / 19.5 60 55
AHS-AS-12130 2017537 12 130 12 60 80 45 / 25 70 / 90 70 19 60 13.5 / 19.5 9.5 / 19.5 60 55
AHS-AS-12150 2017538 12 150 12 60 80 65 / 30 70 / 90 80 19 60 13.5 / 19.5 9.5 / 19.5 60 55
AHS-AS-12170 2017539 12 170 12 60 135 90 / 15 70 / 145 90 19 60 13.5 / 19.5 9.5 / 19.5 60 55
AHS-AS-12230 2017540 12 230 12 60 135 150 / 75 70 / 145 95 19 60 13.5 / 19.5 9.5 / 19.5 60 55
AHS-AS-12260 2017541 12 260 12 60 135 180 / 100 70 / 145 100 19 60 13.5 / 19.5 9.5 / 19.5 60 55
AHS-AS-12300 2017542 12 300 12 60 135 220 / 140 70 / 145 100 19 60 13.5 / 19.5 9.5 / 19.5 60 55
AHS-AS-16150 2017550 16 150 16 80 100 50 / 30 90 / 110 80 24 110 18.5 / 33.0 13.0 / 33.0 80 75
AHS-AS-16170 2017551 16 170 16 80 100 70 / 50 90 / 110 90 24 110 18.5 / 33.0 13.0 / 33.0 80 75
AHS-AS-16220 2017552 16 220 16 80 175 120 / 25 90 / 185 95 24 110 18.5 / 33.0 13.0 / 33.0 80 75
AHS-AS-16260 2017553 16 260 16 80 175 150 / 90 90 / 185 100 24 110 18.5 / 32.0 13.0 / 33.0 80 75
AHS-AS-16300 2017554 16 300 16 80 175 200 / 80 90 / 185 100 24 110 18.5 / 32.0 13.0 / 33.0 80 75
AHS-AS-20170 2017560 20 170 20 120 120 30 / 30 130 / 130 85 30 240 32.0 / 53.5 17.0 / 48.5 120 110
AHS-AS-20200 2017561 20 200 20 120 120 60 / 60 130 / 130 90 30 240 32.0 / 53.5 17.0 / 48.5 120 110
AHS-AS-20260 2017562 20 260 20 120 200 120 / 40 130 / 130 100 30 240 32.0 / 53.5 17.0 / 48.5 120 110
AHS-AS-24200 2017570 24 200 24 150 150 30 / 30 160 / 160 90 36 300 33.5 / 55.0 19.0 / 50.0 180 170
AHS-AS-24230 2017571 24 230 24 150 170 60 / 40 160 / 180 95 36 300 33.5 / 55.0 19.0 / 50.0 180 170
Product :
Ultimate Strength Stud Anchor
Class :
Elite
Material Grade :
Stainless Steel 316
Description
Ultimate-strength stud anchor with premium corrosion resistance for severe environments.
Key Features
SS316 stainless steel; extreme load class; long service life; stable torque- controlled expansion; suitable for coastal & industrial zones.
Applications

• Façade support brackets & façade sub-frame fixings

• Structural steel base plates

• Handrails, guardrails, balustrades

• Equipment foundations & machine base frames

• MEP supports: HVAC units, AHU frames, cable trays, pipe racks

Code Art No. Anchor Dia
mm		 Anchor Length
mm		 Drill Hole Dia
mm		 Min Embed Length
Hnom1 (mm)		 Max Embed Length
Hnom2 (mm)		 Max T.Fix
Hnom1 / Hnom2 (mm)		 Min Drill Hole Depth
Hnom1 / Hnom2 (mm)		 Std. Thread Length
mm		 Nut Dia (AF/SW)
mm		 Recommended Torque
Nm		 Safe Working Load (Uncracked C20/25)
Tensile / Shear (kN)		 Safe Working Load (Cracked C20/25)
Tensile / Shear (kN)		 Safe Distance Between Anchors
mm		 Safe Edge Distance
mm
AHS-SR-08075 2017616 8 75 8 50 55 15 / 10 55 / 60 40 13 20 8.0 / 9.0 4.5 / 8.5 35 40
AHS-SR-08095 2017617 8 95 8 50 55 30 / 25 55 / 60 45 13 20 8.0 / 9.0 4.5 / 8.5 35 40
AHS-SR-08115 2017618 8 115 8 55 100 50 / 5 60 / 105 60 13 20 8.0 / 9.0 4.5 / 8.5 35 40
AHS-SR-10090 2017625 10 90 10 50 70 25 / 10 60 / 80 45 17 45 12.0 / 14.5 8.0 / 14.0 50 45
AHS-SR-10100 2017626 10 100 10 50 70 35 / 20 60 / 80 50 17 45 12.0 / 14.5 8.0 / 14.0 50 45
AHS-SR-10120 2017627 10 120 10 50 70 50 / 30 60 / 80 60 17 45 12.0 / 14.5 8.0 / 14.0 50 45
AHS-SR-10130 2017628 10 130 10 50 100 60 / 10 60 / 110 70 17 45 12.0 / 14.5 8.0 / 14.0 50 45
AHS-SR-10150 2017629 10 150 10 50 100 80 / 30 60 / 110 80 17 45 12.0 / 14.5 8.0 / 14.0 50 45
AHS-SR-12100 2017635 12 100 12 60 75 20 / 5 70 / 85 50 19 60 14.0 / 21.5 10.0 / 21.0 60 55
AHS-SR-12120 2017636 12 120 12 60 80 35 / 20 70 / 90 60 19 60 14.0 / 21.5 10.0 / 21.0 60 55
AHS-SR-12130 2017637 12 130 12 60 80 45 / 25 70 / 90 70 19 60 14.0 / 21.5 10.0 / 21.0 60 55
AHS-SR-12150 2017638 12 150 12 60 80 65 / 30 70 / 90 80 19 60 14.0 / 21.5 10.0 / 21.0 60 55
AHS-SR-12170 2017639 12 170 12 60 135 90 / 15 70 / 145 90 19 60 14.0 / 21.5 10.0 / 21.0 60 55
AHS-SR-12230 2017640 12 230 12 60 135 150 / 75 70 / 145 95 19 60 14.0 / 21.5 10.0 / 21.0 60 55
AHS-SR-16150 2017653 16 150 16 80 100 50 / 30 90 / 110 80 24 110 19.5 / 37.0 13.5 / 36.5 80 75
AHS-SR-16170 2017654 16 170 16 80 100 70 / 50 90 / 110 90 24 110 19.5 / 37.0 13.5 / 36.5 80 75
AHS-SR-16220 2017655 16 220 16 80 175 120 / 25 90 / 185 95 24 110 19.5 / 37.0 13.5 / 36.5 80 75
AHS-SR-16260 2017656 16 260 16 80 175 150 / 90 90 / 185 100 24 110 19.5 / 37.0 13.5 / 36.5 80 75
AHS-SR-20170 2017661 20 170 20 120 120 30 / 30 130 / 130 85 30 240 33.0 / 55.5 17.5 / 53.5 120 110
AHS-SR-20200 2017662 20 200 20 120 120 60 / 60 130 / 130 90 30 240 33.0 / 55.5 17.5 / 53.5 120 110
AHS-SR-24200 2017665 24 200 24 150 150 30 / 30 160 / 160 90 36 300 34.0 / 64.0 19.5 / 57.5 180 170
AHS-SR-24230 2017666 24 230 24 150 170 60 / 40 160 / 180 95 36 300 34.0 / 64.0 19.5 / 57.5 180 170
Product :
High Corrosion Resistant Stud Anchor
Class :
Elite
Material Grade :
HCR Coated / SS Grade
Description
High corrosion resistant stud anchor for aggressive industrial and marine environments.
Key Features
Enhanced corrosion protection; long service life; high mechanical load capacity; suitable for chemical exposure zones; reduced maintenance lifecycle cost.
Applications

• Façade support brackets & façade sub-frame fixings

• Structural steel base plates

• Handrails, guardrails, balustrades

• Equipment foundations & machine base frames

• MEP supports: HVAC units, AHU frames, cable trays, pipe racks

Code Art No. Anchor Dia
mm		 Anchor Length
mm		 Drill Hole Dia
mm		 Min Embed Length
Hnom1 (mm)		 Max Embed Length
Hnom2 (mm)		 Max T.Fix
Hnom1 / Hnom2 (mm)		 Min Drill Hole Depth
Hnom1 / Hnom2 (mm)		 Std. Thread Length
mm		 Nut Dia (SW)
mm		 Recommended Torque
Nm		 Safe Working Load (Uncracked/Cracked C20/25)
Tensile / Shear (kN)		 Safe Distance Between Anchors
mm		 Safe Edge Distance
mm
AHS-HCR-08100 2017710 8 100 8 50 70 35 / 10 60 / 80 50 13 20 7.5 / 8.5 60 60
AHS-HCR-10130 2017720 10 130 10 60 80 60 / 30 70 / 90 60 17 40 11.5 / 13.8 70 70
AHS-HCR-12150 2017130 12 150 12 70 100 65 / 30 80 / 110 70 19 60 13.7 / 20.0 70 70
AHS-HCR-16150 2017140 16 150 16 80 110 50 / 20 90 / 120 75 24 80 19.0 / 34.0 80 90
You May Also Like

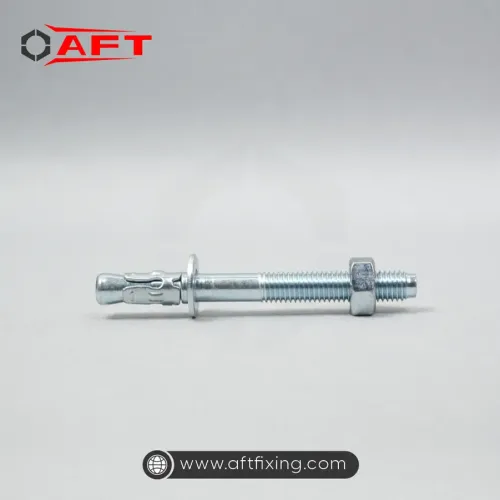

Expansion Bolts Manufacturers in India
Expansion Bolts
Read More

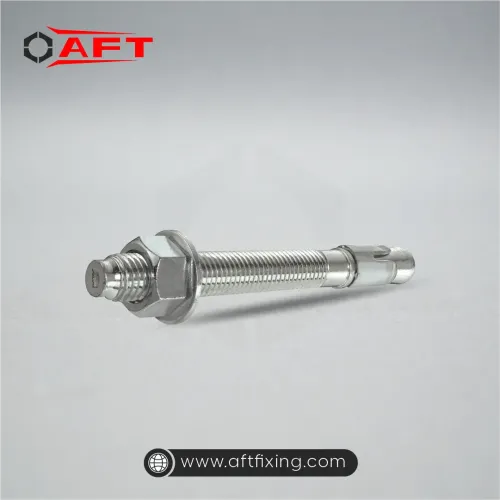

Through Bolt Anchor Manufacturers in India
Through Bolt Anchor
Read More

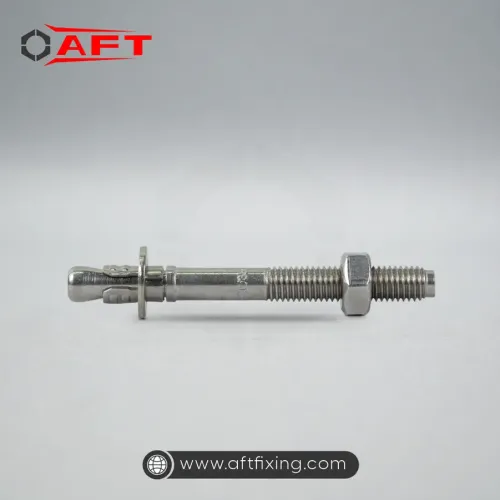

Concrete Stud Manufacturers in India
Concrete Stud
Read More

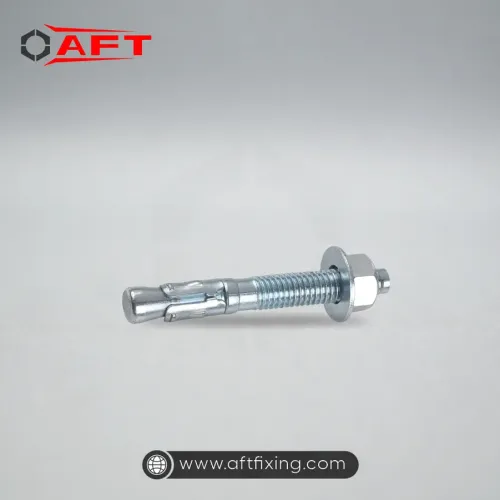

Concrete Wedge Bolts Manufacturers in India
Concrete Wedge Bolts
Read More

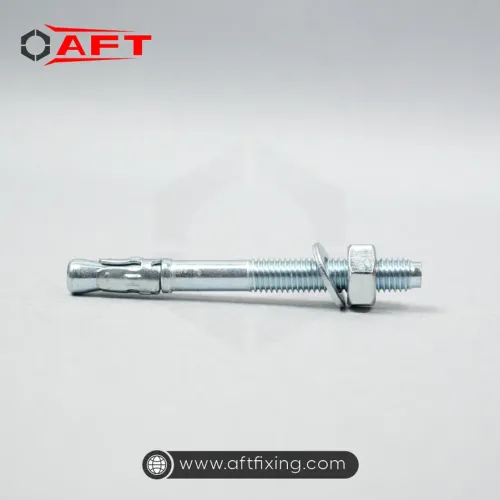

Heavy Duty Concrete Anchors Manufacturers in India
Heavy Duty Concrete Anchors
Read More

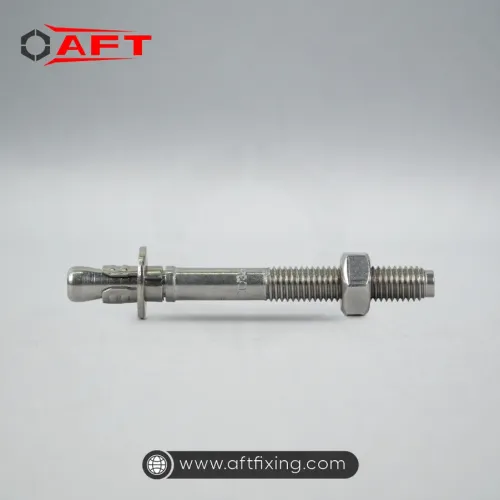

Anchors Bolt Manufacturers in India
Anchors Bolt
Read More

Proven Anchor Fastening Solutions in Major Construction & Infrastructure Projects

Central Vista
Central Vista

New Parliament Building

New Delhi
Statue of unity
Statue of unity

Kewadia

Gujarat
BJP Headquarters
BJP Headquarters

Ddu marg

New Delhi
Explore More

Frequently Asked Questions About Anchor Fasteners for Construction & Industrial Applications

Explore our FAQs to learn how our anchor fasteners, wedge anchors, sleeve anchors, and high-performance construction fasteners help build strong, long-lasting structures with precision and reliability.

Being based near Delhi (Sonipat, Haryana) gives us a logistics advantage for faster delivery across India. You can request a quote, select from our wide product range and tap into our technical & customer support at +91-7982633703 or info@aftfixing.com.
We provide a broad range of solutions including mechanical anchors, expansion bolts, structural anchors, sleeve anchors, bullet fasteners, concrete screws and more — designed for concrete, brick and block substrates
Our products are made with high-quality materials, engineered with precision manufacturing, and follow IS & DIN standards — giving you strength, reliability and long-term durability.
.We don’t just manufacture anchor fasteners — we build lasting partnerships. Our support extends beyond production, offering site-preparation guidance, on-site installation assistance, and tailored solutions designed to meet the unique needs of every project.

Our Trusted Industrial & Construction Partners

Know More
L&T
TATA PROJECTS
SHAPOORJI PALLONJI
GMP GROUP
HCC
AFCONS
JMC PROJECTS
GAMMON
JKUMAR INFRA
RELIANCE INFRA
PUNJ LLOYD
GODREJ PROP
DLF
ASHOKA BUILDCON
BL KASHYAP
ESSAR
IRCON
NCC
ACIL
ITD
OMAXE
SIMPLEX
CEIGALL
SMCC
SOBHA
PSP PROJECTS
SUROJ BUILDCON
URC CONSTRUCTION
AECOM
NBCC
RVNL
Quick Info

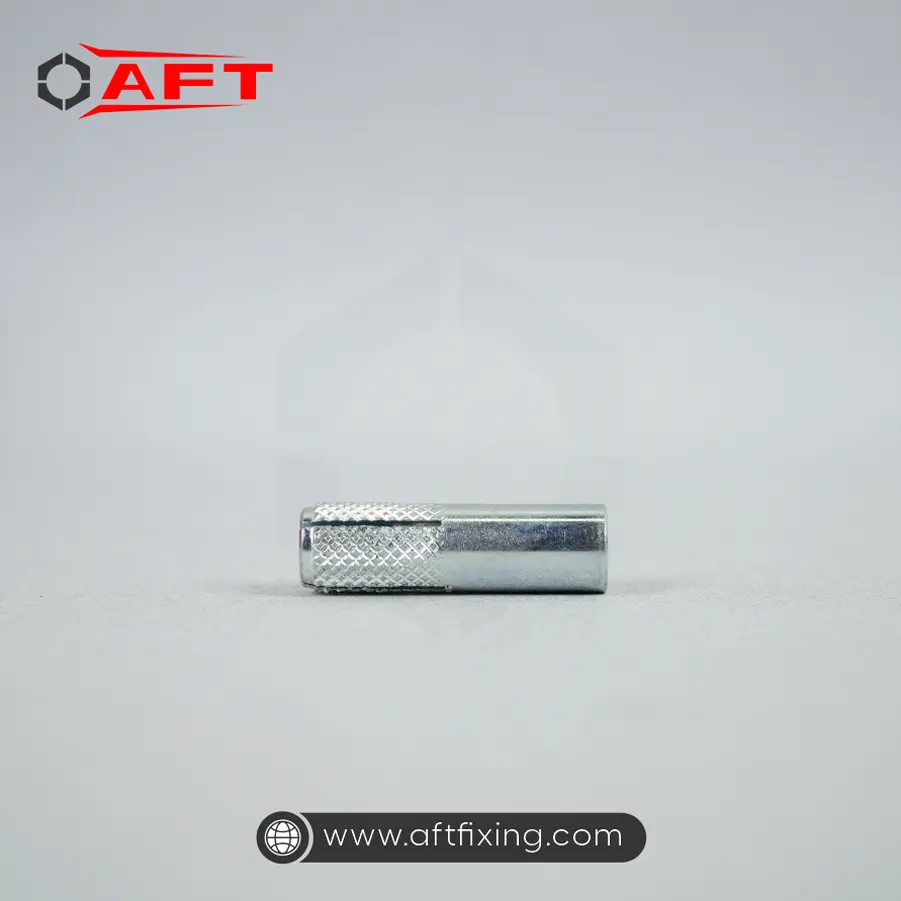

Internally Threaded Anchors

As an Internally Threaded Anchors Manufacturer in India, AFT fittings develops anchors that tap a clean, female thread in concrete for bolts, studs, or rod. For example, drop-ins can set flush and accept removable hardware

Read More
Call Us
