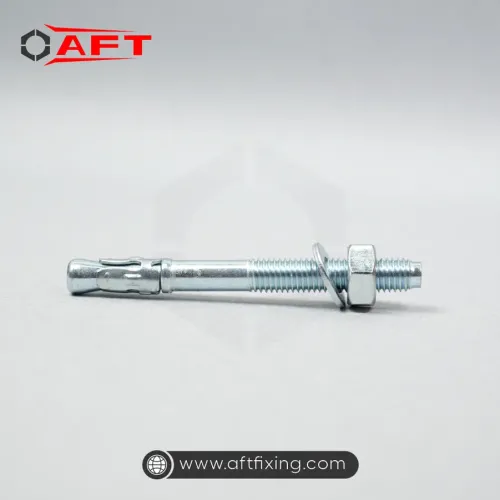

Structural Anchors Manufacturers in Sonipat
Structural Anchors

Structural Anchors Manufacturers in India

Structural Anchors Manufacturers in India
Catalogue

Recognized among the top Structural Anchors Manufacturers in India, we are committed to supplying products that meet global safety and quality standards. With a wide range of sizes and features available, we serve projects of all scales – from residential construction to large industrial infrastructure. AFT’s extensive distribution network across Kenya allows us to quickly deliver you quality structural anchors when you need them.

We create our products to maximize strength, durability, and ease of installation. The Structural Anchor System offers the highest level of strength, durability, and water resistance of any product we manufacture. Our systems will withstand extreme pressure, as well as heavy loads and vibration.

When it comes to security and reliable construction, Structural Anchors are the backbone of strength and durability. Designed to provide excellent fastening in concrete and masonry, these anchors are widely used in both commercial and industrial projects. From machinery & equipment anchoring to heavy equipment platforms, Structural Anchors guarantee stability, long service life, and superior performance.

Structural Anchors suppliers & Dealers in India – Nationwide Reach You can Depend On

As one of the top Structural Anchors Suppliers in India, we ensure our products reach industries, contractors, and builders across the country.

Our products are largely used for structural steel support, HVAC systems, pipelines, and commercial buildings. With safe packaging and on-time dispatch, we make sure your project progresses positively without delays.

As a reliable Structural Anchors Dealers in India, we supply anchors to multiple industries and construction companies all over the world.

Contractors trust us because we manufacture our products to provide a superior value for their cost, and we have an outstanding reputation for timely delivery and customer support throughout India

Specification

Details

Product Name

Structural Anchors

Size Range

Up to M24

Diameter

Up to 24 mm

Anchor Length

Up to 200 mm

Installation Type

Mechanical anchoring

Application / Use

Structural fixing in concrete and masonry

Usage Areas

Beams, columns, base plates, and load-bearing structures

Manufacturing Type

Precision-manufactured for structural applications

Brand

AFT (Anchorite Fixing Technology)

Application of Structural Anchors

  • Heavy equipment platforms
  • Machinery & equipment anchoring
  • Railings, balusters, and a staircase
  • Electrical, HVAC, and pipeline supports
  • Structural steel support
  • Commercial & residential construction

Structural Anchors Wholesalers in India – Supporting Large-Scale Infrastructure

As reputed Structural Anchors Wholesalers in India, we provide bulk supplies for major infrastructure and industrial projects. With large stock availability, efficient logistics, and affordable wholesale rates, we have become a trusted partner for projects across the world. Our Wholesale clients, including construction firms and industrial projects, depend on us for consistent stock, excellent pricing, and quality-tested products.

Why Choose Our Structural Anchors?

  • Manufactured with premium-grade materials
  • High strength and long service life
  • Resistant to corrosion, vibration, and pressure
  • Available in multiple sizes and specifications
  • Affordable pricing for retail and wholesale supply

Get the Best Structural Anchors Today

Contact us for more information on AFT's Industrial Anchor Product Line.

Our Products Range
AHS-HCR Manufacturers in Sonipat
AHS-HCR
ACS-HS Manufacturers in Sonipat
ACS-HS
ACS-SR Manufacturers in Sonipat
ACS-SR
AHS-AS Manufacturers in Sonipat
AHS-AS
AHS-SR Manufacturers in Sonipat
AHS-SR
Product :
Concrete Stud Anchor
Class :
Standard
Material Grade :
Carbon Steel, Zinc Plated
Description
Torque-controlled mechanical stud anchor for reliable static load transfer in concrete and dense substrates.
Key Features
Cold-formed body; predictable torque setting; consistent radial expansion; quick through-fix installation; cost-effective solution.
Applications

• Canopy structures & sunshade frames

• Signage frames & advertising hoardings

• Industrial racking systems

• Safety barriers & crash barriers

• Seismic restraint connections for services

• Staircase stringer supports

• Retrofits and strengthening works

Code Art No. Anchor Dia mm Anchor Length mm Drill Hole Dia mm Minima Embed Length Hnom1 mm Maxima Embed Length Hnom2 mm Maxima T.Fix Hnom1 / Hnom2 mm Minima Drill Hole Depth Hnom1 / Hnom2 mm Std. Thread Length mm Nut Dia (SW) mm Recommended Torque Nm Recommended Safe Working Load (Uncracked Concrete C20/25) Tensile (kN) / Shear (kN) Safe Distance Between Anchors mm Safe Edge Distance mm
ACS-H-08075 2017111 8 75 8 40 50 20 / 10 45 / 55 35 13 15 5.1 / 5.2 60 60
ACS-H-10090 2017122 10 90 10 50 60 25 / 15 60 / 70 40 17 30 7.2 / 8.8 70 70
ACS-H-10100 2017123 10 100 10 50 60 35 / 25 60 / 70 45 17 30 7.2 / 8.8 70 70
ACS-H-12100 2017136 12 100 12 60 75 20 / 5 70 / 85 35 19 50 10.2 / 13.9 80 90
ACS-H-12110 2017144 12 110 12 60 75 30 / 15 70 / 85 45 19 50 10.2 / 13.9 80 90
ACS-H-12120 2017137 12 120 12 60 75 40 / 25 70 / 85 55 19 50 10.2 / 13.9 80 90
ACS-H-12150 2017139 12 150 12 60 75 70 / 55 70 / 85 85 19 50 10.2 / 13.9 80 90
ACS-H-16120 2017151 16 120 16 80 95 15 / -- 90 / 105 65 24 100 15.5 / 26.0 110 110
ACS-H-16140 2017152 16 140 16 80 95 35 / 20 90 / 105 75 24 100 15.5 / 26.0 110 110

NOTE :

*All load tolerances can be achieved in accordance with the specified dimensions mentioned above.
*Any modifications to the product portfolio can be implemented without prior notification to the stakeholders.
*Special lengths can be provided upon request, subject to a minimum order quantity requirement.
*KN= Kilonewton (1KN = 100Kgs.)

Product :
High Strength Stud Anchor
Class :
Premium
Material Grade :
Carbon Steel, Zinc Plated
Description
High-load stud anchor for demanding structural connections in concrete.
Key Features
Higher tensile capacity; optimized expansion cone; controlled torque installation; cold-formed threads; reliable load transfer.
Applications

• Canopy structures & sunshade frames

• Signage frames & advertising hoardings

• Industrial racking systems

• Safety barriers & crash barriers

• Seismic restraint connections for services

• Staircase stringer supports

• Retrofits and strengthening works

Code Art No. Anchor Dia
mm		 Anchor Length
mm		 Drill Hole Dia
mm		 Min Embed Length
Hnom1 (mm)		 Max Embed Length
Hnom2 (mm)		 Max T.Fix
Hnom1 / Hnom2 (mm)		 Min Drill Hole Depth
Hnom1 / Hnom2 (mm)		 Std. Thread Length
mm		 Nut Dia (SW)
mm		 Recommended Torque
Nm		 Safe Working Load (C20/25)
Tensile / Shear (kN)		 Safe Distance Between Anchors
mm		 Safe Edge Distance
mm
ACS-HS-06050 2017260 6 50 6 30 35 5 / - 35 / 40 20 10 5 3.0 / 3.8 35 35
ACS-HS-06065 2017261 6 65 6 35 40 10 / 5 40 / 45 30 10 5 3.8 / 3.9 35 35
ACS-HS-06085 2017262 6 85 6 50 60 15 / 5 55 / 65 35 10 5 4.5 / 3.9 35 35
ACS-HS-06100 2017263 6 100 6 55 65 25 / 15 60 / 70 45 10 5 4.5 / 3.9 35 35
ACS-HS-08060 2017201 8 60 8 40 - 5 / - 45 / - 25 13 15 6.5 / 6.5 35 35
ACS-HS-08075 2017202 8 75 8 40 50 15 / 5 45 / 55 40 13 15 6.5 / 6.5 35 35
ACS-HS-08095 2017203 8 95 8 50 70 25 / 5 55 / 75 45 13 15 7.8 / 6.5 35 35
ACS-HS-08115 2017204 8 115 8 50 80 45 / 15 55 / 85 55 13 15 7.8 / 6.5 35 35
ACS-HS-10075 2017211 10 75 10 50 55 5 / - 60 / 65 40 17 25 9.2 / 10.5 50 50
ACS-HS-10095 2017212 10 95 10 50 60 25 / 15 60 / 70 45 17 25 9.2 / 10.5 50 50
ACS-HS-10115 2017213 10 115 10 50 90 45 / 5 60 / 100 55 17 25 9.2 / 10.5 50 45
ACS-HS-10130 2017215 10 130 10 60 90 50 / 20 70 / 100 65 17 25 10.3 / 10.8 50 40
ACS-HS-10150 2017216 10 150 10 70 90 60 / 40 80 / 100 80 17 25 11.5 / 11.0 50 40
ACS-HS-10170 2017217 10 170 10 70 90 80 / 60 80 / 100 95 17 25 11.5 / 11.0 50 40
ACS-HS-12095 2017225 12 95 12 65 75 10 / - 75 / 85 35 19 50 12.8 / 17.0 75 65
ACS-HS-12115 2017226 12 115 12 65 80 30 / 15 75 / 85 55 19 50 12.8 / 17.0 75 65
ACS-HS-12130 2017228 12 130 12 70 100 40 / 10 80 / 85 65 19 50 12.8 / 17.0 75 65
ACS-HS-12150 2017229 12 150 12 70 100 60 / 25 80 / 110 80 19 50 12.8 / 17.0 75 65
ACS-HS-12175 2017230 12 175 12 90 100 65 / 55 100 / 110 90 19 50 16.8 / 16.9 75 65
ACS-HS-12205 2017231 12 205 12 90 100 90 / 80 100 / 110 95 19 50 16.8 / 16.9 75 65
ACS-HS-12225 2017232 12 225 12 90 100 110 / 100 100 / 110 100 19 50 16.8 / 16.9 75 65
ACS-HS-16105 2017241 16 105 16 75 - 10 / - 85 / - 50 24 80 17.5 / 29.7 90 80
ACS-HS-16125 2017242 16 125 16 75 90 25 / 10 85 / 100 60 24 80 17.5 / 29.7 90 80
ACS-HS-16145 2017243 16 145 16 75 100 45 / 25 85 / 110 75 24 80 17.5 / 29.7 90 80
ACS-HS-16180 2017245 16 180 16 100 135 60 / 20 110 / 145 90 24 80 23.5 / 29.8 90 80
ACS-HS-16235 2017246 16 235 16 100 135 100 / 75 110 / 145 95 24 80 23.5 / 29.8 90 80
ACS-HS-20130 2017255 20 130 20 90 100 15 / 10 100 / 110 65 30 200 30.0 / 49.5 175 120
ACS-HS-20170 2017256 20 170 20 90 130 60 / 20 100 / 140 80 30 200 30.0 / 49.5 175 120

NOTE :

*All load tolerances can be achieved in accordance with the specified dimensions mentioned above.
*Any modifications to the product portfolio can be implemented without prior notification to the stakeholders.
*Special lengths can be provided upon request, subject to a minimum order quantity requirement.
*KN= Kilonewton (1KN = 100Kgs.)

Product :
High Strength Stud Anchor
Class :
Elite
Material Grade :
Stainless Steel 316
Description
High-load stud anchor for aggressive and coastal environments requiring corrosion resistance.
Key Features
High static & dynamic capacity; SS316 marine-grade durability; stable expansion geometry; long service life; suitable for harsh outdoor zones.
Applications

• Façade support brackets & façade sub-frame fixings

• Structural steel base plates

• Handrails, guardrails, balustrades

• Equipment foundations & machine base frames

• MEP supports: HVAC units, AHU frames, cable trays, pipe racks

Code Art No. Anchor Dia
mm		 Anchor Length
mm		 Drill Hole Dia
mm		 Min Embed Length
Hnom1 (mm)		 Max Embed Length
Hnom2 (mm)		 Max T.Fix
Hnom1 / Hnom2 (mm)		 Min Drill Hole Depth
Hnom1 / Hnom2 (mm)		 Std. Thread Length
mm		 Nut Dia (SW)
mm		 Recommended Torque
Nm		 Safe Working Load (C20/25)
Tensile / Shear (kN)		 Safe Distance Between Anchors
mm		 Safe Edge Distance
mm
ACS-SR-06050 2017470 6 50 6 30 35 5 / - 35 / 40 20 10 5 3.0 / 4.2 35 35
ACS-SR-06065 2017471 6 65 6 35 40 10 / 5 40 / 45 30 10 5 3.8 / 4.2 35 35
ACS-SR-06085 2017472 6 85 6 50 60 15 / 5 55 / 65 35 10 5 4.5 / 4.2 35 35
ACS-SR-06100 2017473 6 100 6 55 65 25 / 15 60 / 70 45 10 5 4.5 / 4.2 35 35
ACS-SR-08060 2017410 8 60 8 40 - 5 / - 45 / - 25 13 15 6.5 / 7.0 35 35
ACS-SR-08075 2017411 8 75 8 40 50 15 / 5 45 / 55 40 13 15 6.5 / 7.0 35 35
ACS-SR-08095 2017412 8 95 8 50 70 25 / 5 55 / 75 45 13 15 7.8 / 7.0 35 35
ACS-SR-08115 2017413 8 115 8 50 80 45 / 15 55 / 85 55 13 15 7.8 / 7.0 35 35
ACS-SR-10075 2017420 10 75 10 50 55 5 / - 60 / 65 40 17 25 9.2 / 13.1 50 50
ACS-SR-10095 2017421 10 95 10 50 60 25 / 15 60 / 70 45 17 25 9.2 / 13.1 50 50
ACS-SR-10115 2017422 10 115 10 50 90 45 / 5 60 / 100 55 17 25 9.2 / 13.1 50 45
ACS-SR-10130 2017423 10 130 10 60 90 50 / 20 70 / 100 65 17 25 10.3 / 13.1 50 40
ACS-SR-10150 2017424 10 150 10 70 90 60 / 40 80 / 100 80 17 25 11.5 / 13.1 50 40
ACS-SR-10170 2017425 10 170 10 70 90 80 / 60 80 / 100 95 17 25 11.5 / 13.1 50 40
ACS-SR-12095 2017430 12 95 12 65 75 10 / - 75 / 85 35 19 50 12.8 / 17.0 75 65
ACS-SR-12115 2017431 12 115 12 65 80 30 / 15 75 / 85 55 19 50 12.8 / 17.0 75 65
ACS-SR-12130 2017432 12 130 12 70 100 40 / 10 80 / 85 65 19 50 12.8 / 17.0 75 65
ACS-SR-12150 2017433 12 150 12 70 100 60 / 25 80 / 110 80 19 50 12.8 / 17.0 75 65
ACS-SR-12175 2017434 12 175 12 90 100 65 / 55 100 / 110 90 19 50 16.8 / 16.9 75 65
ACS-SR-12205 2017435 12 205 12 90 100 90 / 80 100 / 110 95 19 50 16.8 / 16.9 75 65
ACS-SR-12225 2017435 12 225 12 90 100 110 / 100 100 / 110 100 19 50 16.8 / 16.9 75 65
ACS-SR-16105 2017440 16 105 16 75 - 10 / - 85 / - 50 24 80 17.5 / 32.5 90 80
ACS-SR-16125 2017441 16 125 16 75 90 25 / 10 85 / 100 60 24 80 17.5 / 32.5 90 80
ACS-SR-16145 2017442 16 145 16 75 100 45 / 25 85 / 110 75 24 80 17.5 / 32.5 90 80
ACS-SR-16180 2017443 16 180 16 100 135 60 / 20 110 / 145 90 24 80 23.5 / 32.5
Product :
Ultimate Strength Stud Anchor
Class :
Elite
Material Grade :
Alloy Steel, Zinc Plated
Description
Ultra high-load mechanical anchor for critical structural and safety-related fixings.
Key Features
High-tensile alloy steel core; robust expansion clip; deep embedment for high loads; vibration-resistant design; suitable for heavy machinery bases.
Applications

• Façade support brackets & façade sub-frame fixings

• Structural steel base plates

• Handrails, guardrails, balustrades

• Equipment foundations & machine base frames

• MEP supports: HVAC units, AHU frames, cable trays, pipe racks

Code Art No. Anchor Dia
mm		 Anchor Length
mm		 Drill Hole Dia
mm		 Min Embed Length
Hnom1 (mm)		 Max Embed Length
Hnom2 (mm)		 Max T.Fix
Hnom1 / Hnom2 (mm)		 Min Drill Hole Depth
Hnom1 / Hnom2 (mm)		 Std. Thread Length
mm		 Nut Dia (AF/SW)
mm		 Recommended Torque
Nm		 Safe Working Load (Uncracked C20/25)
Tensile / Shear (kN)		 Safe Working Load (Cracked C20/25)
Tensile / Shear (kN)		 Safe Distance Between Anchors
mm		 Safe Edge Distance
mm
AHS-AS-08075 2017511 8 75 8 50 55 15 / 10 55 / 60 40 13 20 7.0 / 8.0 4.0 / 8.0 35 40
AHS-AS-08095 2017512 8 95 8 50 55 30 / 25 55 / 60 45 13 20 7.0 / 8.0 4.0 / 8.0 35 40
AHS-AS-08115 2017513 8 115 8 55 100 50 / 5 60 / 105 60 13 20 7.0 / 8.0 4.0 / 8.0 35 40
AHS-AS-10090 2017520 10 90 10 50 70 25 / 10 60 / 80 45 17 45 11.0 / 13.5 7.5 / 13.5 50 45
AHS-AS-10100 2017521 10 100 10 50 70 35 / 20 60 / 80 50 17 45 11.0 / 13.5 7.5 / 13.5 50 45
AHS-AS-10120 2017522 10 120 10 50 70 50 / 30 60 / 80 60 17 45 11.0 / 13.5 7.5 / 13.5 50 45
AHS-AS-10130 2017523 10 130 10 50 100 60 / 10 60 / 110 70 17 45 11.0 / 13.5 7.5 / 13.5 50 45
AHS-AS-10150 2017524 10 150 10 50 100 80 / 30 60 / 110 80 17 45 11.0 / 13.5 7.5 / 13.5 50 45
AHS-AS-10200 2017525 10 200 10 50 100 130 / 80 60 / 110 100 17 45 11.0 / 13.5 7.5 / 13.5 50 45
AHS-AS-12100 2017535 12 100 12 60 75 20 / 5 70 / 85 50 19 60 13.5 / 19.5 9.5 / 19.5 60 55
AHS-AS-12120 2017536 12 120 12 60 80 35 / 20 70 / 90 60 19 60 13.5 / 19.5 9.5 / 19.5 60 55
AHS-AS-12130 2017537 12 130 12 60 80 45 / 25 70 / 90 70 19 60 13.5 / 19.5 9.5 / 19.5 60 55
AHS-AS-12150 2017538 12 150 12 60 80 65 / 30 70 / 90 80 19 60 13.5 / 19.5 9.5 / 19.5 60 55
AHS-AS-12170 2017539 12 170 12 60 135 90 / 15 70 / 145 90 19 60 13.5 / 19.5 9.5 / 19.5 60 55
AHS-AS-12230 2017540 12 230 12 60 135 150 / 75 70 / 145 95 19 60 13.5 / 19.5 9.5 / 19.5 60 55
AHS-AS-12260 2017541 12 260 12 60 135 180 / 100 70 / 145 100 19 60 13.5 / 19.5 9.5 / 19.5 60 55
AHS-AS-12300 2017542 12 300 12 60 135 220 / 140 70 / 145 100 19 60 13.5 / 19.5 9.5 / 19.5 60 55
AHS-AS-16150 2017550 16 150 16 80 100 50 / 30 90 / 110 80 24 110 18.5 / 33.0 13.0 / 33.0 80 75
AHS-AS-16170 2017551 16 170 16 80 100 70 / 50 90 / 110 90 24 110 18.5 / 33.0 13.0 / 33.0 80 75
AHS-AS-16220 2017552 16 220 16 80 175 120 / 25 90 / 185 95 24 110 18.5 / 33.0 13.0 / 33.0 80 75
AHS-AS-16260 2017553 16 260 16 80 175 150 / 90 90 / 185 100 24 110 18.5 / 32.0 13.0 / 33.0 80 75
AHS-AS-16300 2017554 16 300 16 80 175 200 / 80 90 / 185 100 24 110 18.5 / 32.0 13.0 / 33.0 80 75
AHS-AS-20170 2017560 20 170 20 120 120 30 / 30 130 / 130 85 30 240 32.0 / 53.5 17.0 / 48.5 120 110
AHS-AS-20200 2017561 20 200 20 120 120 60 / 60 130 / 130 90 30 240 32.0 / 53.5 17.0 / 48.5 120 110
AHS-AS-20260 2017562 20 260 20 120 200 120 / 40 130 / 130 100 30 240 32.0 / 53.5 17.0 / 48.5 120 110
AHS-AS-24200 2017570 24 200 24 150 150 30 / 30 160 / 160 90 36 300 33.5 / 55.0 19.0 / 50.0 180 170
AHS-AS-24230 2017571 24 230 24 150 170 60 / 40 160 / 180 95 36 300 33.5 / 55.0 19.0 / 50.0 180 170
Product :
Ultimate Strength Stud Anchor
Class :
Elite
Material Grade :
Stainless Steel 316
Description
Ultimate-strength stud anchor with premium corrosion resistance for severe environments.
Key Features
SS316 stainless steel; extreme load class; long service life; stable torque- controlled expansion; suitable for coastal & industrial zones.
Applications

• Façade support brackets & façade sub-frame fixings

• Structural steel base plates

• Handrails, guardrails, balustrades

• Equipment foundations & machine base frames

• MEP supports: HVAC units, AHU frames, cable trays, pipe racks

Code Art No. Anchor Dia
mm		 Anchor Length
mm		 Drill Hole Dia
mm		 Min Embed Length
Hnom1 (mm)		 Max Embed Length
Hnom2 (mm)		 Max T.Fix
Hnom1 / Hnom2 (mm)		 Min Drill Hole Depth
Hnom1 / Hnom2 (mm)		 Std. Thread Length
mm		 Nut Dia (AF/SW)
mm		 Recommended Torque
Nm		 Safe Working Load (Uncracked C20/25)
Tensile / Shear (kN)		 Safe Working Load (Cracked C20/25)
Tensile / Shear (kN)		 Safe Distance Between Anchors
mm		 Safe Edge Distance
mm
AHS-SR-08075 2017616 8 75 8 50 55 15 / 10 55 / 60 40 13 20 8.0 / 9.0 4.5 / 8.5 35 40
AHS-SR-08095 2017617 8 95 8 50 55 30 / 25 55 / 60 45 13 20 8.0 / 9.0 4.5 / 8.5 35 40
AHS-SR-08115 2017618 8 115 8 55 100 50 / 5 60 / 105 60 13 20 8.0 / 9.0 4.5 / 8.5 35 40
AHS-SR-10090 2017625 10 90 10 50 70 25 / 10 60 / 80 45 17 45 12.0 / 14.5 8.0 / 14.0 50 45
AHS-SR-10100 2017626 10 100 10 50 70 35 / 20 60 / 80 50 17 45 12.0 / 14.5 8.0 / 14.0 50 45
AHS-SR-10120 2017627 10 120 10 50 70 50 / 30 60 / 80 60 17 45 12.0 / 14.5 8.0 / 14.0 50 45
AHS-SR-10130 2017628 10 130 10 50 100 60 / 10 60 / 110 70 17 45 12.0 / 14.5 8.0 / 14.0 50 45
AHS-SR-10150 2017629 10 150 10 50 100 80 / 30 60 / 110 80 17 45 12.0 / 14.5 8.0 / 14.0 50 45
AHS-SR-12100 2017635 12 100 12 60 75 20 / 5 70 / 85 50 19 60 14.0 / 21.5 10.0 / 21.0 60 55
AHS-SR-12120 2017636 12 120 12 60 80 35 / 20 70 / 90 60 19 60 14.0 / 21.5 10.0 / 21.0 60 55
AHS-SR-12130 2017637 12 130 12 60 80 45 / 25 70 / 90 70 19 60 14.0 / 21.5 10.0 / 21.0 60 55
AHS-SR-12150 2017638 12 150 12 60 80 65 / 30 70 / 90 80 19 60 14.0 / 21.5 10.0 / 21.0 60 55
AHS-SR-12170 2017639 12 170 12 60 135 90 / 15 70 / 145 90 19 60 14.0 / 21.5 10.0 / 21.0 60 55
AHS-SR-12230 2017640 12 230 12 60 135 150 / 75 70 / 145 95 19 60 14.0 / 21.5 10.0 / 21.0 60 55
AHS-SR-16150 2017653 16 150 16 80 100 50 / 30 90 / 110 80 24 110 19.5 / 37.0 13.5 / 36.5 80 75
AHS-SR-16170 2017654 16 170 16 80 100 70 / 50 90 / 110 90 24 110 19.5 / 37.0 13.5 / 36.5 80 75
AHS-SR-16220 2017655 16 220 16 80 175 120 / 25 90 / 185 95 24 110 19.5 / 37.0 13.5 / 36.5 80 75
AHS-SR-16260 2017656 16 260 16 80 175 150 / 90 90 / 185 100 24 110 19.5 / 37.0 13.5 / 36.5 80 75
AHS-SR-20170 2017661 20 170 20 120 120 30 / 30 130 / 130 85 30 240 33.0 / 55.5 17.5 / 53.5 120 110
AHS-SR-20200 2017662 20 200 20 120 120 60 / 60 130 / 130 90 30 240 33.0 / 55.5 17.5 / 53.5 120 110
AHS-SR-24200 2017665 24 200 24 150 150 30 / 30 160 / 160 90 36 300 34.0 / 64.0 19.5 / 57.5 180 170
AHS-SR-24230 2017666 24 230 24 150 170 60 / 40 160 / 180 95 36 300 34.0 / 64.0 19.5 / 57.5 180 170
Product :
High Corrosion Resistant Stud Anchor
Class :
Elite
Material Grade :
HCR Coated / SS Grade
Description
High corrosion resistant stud anchor for aggressive industrial and marine environments.
Key Features
Enhanced corrosion protection; long service life; high mechanical load capacity; suitable for chemical exposure zones; reduced maintenance lifecycle cost.
Applications

• Façade support brackets & façade sub-frame fixings

• Structural steel base plates

• Handrails, guardrails, balustrades

• Equipment foundations & machine base frames

• MEP supports: HVAC units, AHU frames, cable trays, pipe racks

Code Art No. Anchor Dia
mm		 Anchor Length
mm		 Drill Hole Dia
mm		 Min Embed Length
Hnom1 (mm)		 Max Embed Length
Hnom2 (mm)		 Max T.Fix
Hnom1 / Hnom2 (mm)		 Min Drill Hole Depth
Hnom1 / Hnom2 (mm)		 Std. Thread Length
mm		 Nut Dia (SW)
mm		 Recommended Torque
Nm		 Safe Working Load (Uncracked/Cracked C20/25)
Tensile / Shear (kN)		 Safe Distance Between Anchors
mm		 Safe Edge Distance
mm
AHS-HCR-08100 2017710 8 100 8 50 70 35 / 10 60 / 80 50 13 20 7.5 / 8.5 60 60
AHS-HCR-10130 2017720 10 130 10 60 80 60 / 30 70 / 90 60 17 40 11.5 / 13.8 70 70
AHS-HCR-12150 2017130 12 150 12 70 100 65 / 30 80 / 110 70 19 60 13.7 / 20.0 70 70
AHS-HCR-16150 2017140 16 150 16 80 110 50 / 20 90 / 120 75 24 80 19.0 / 34.0 80 90
You May Also Like

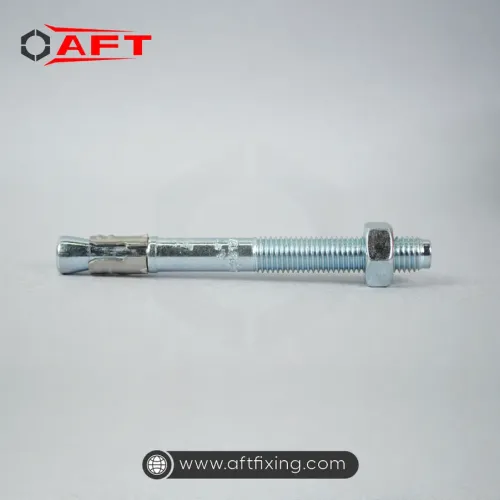

Mechanical Anchors Manufacturers in India
Mechanical Anchors
Read More

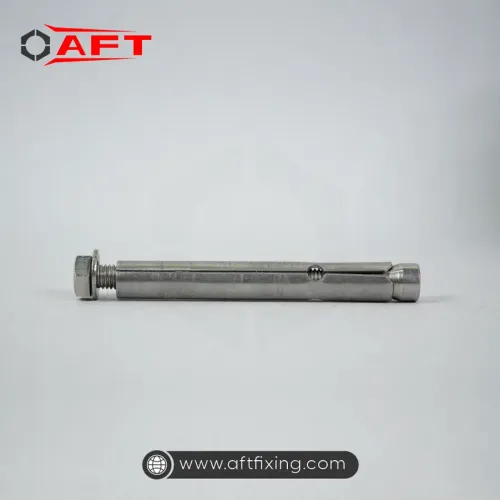

Expansion Anchors Manufacturers in India
Expansion Anchors
Read More

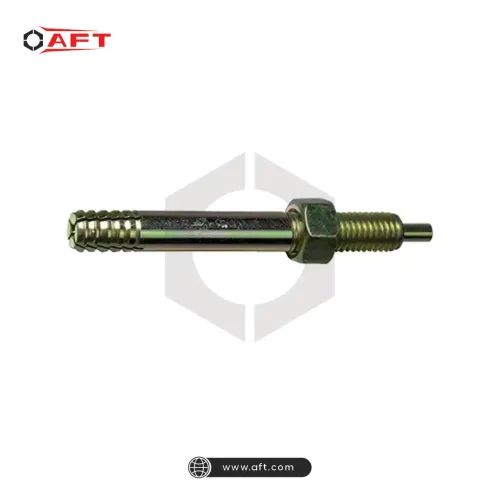

Fastening Anchors Manufacturers in India
Fastening Anchors
Read More

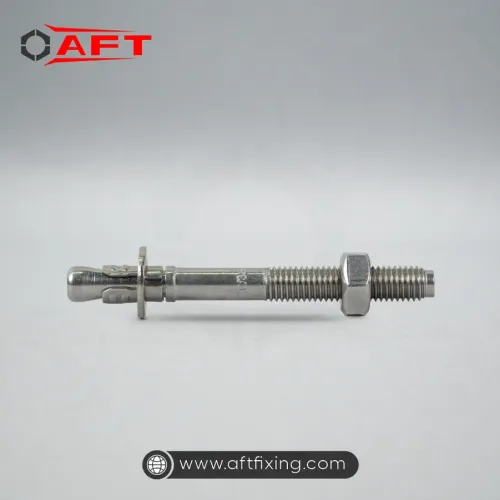

Concrete Anchors Manufacturers in India
Concrete Anchors
Read More

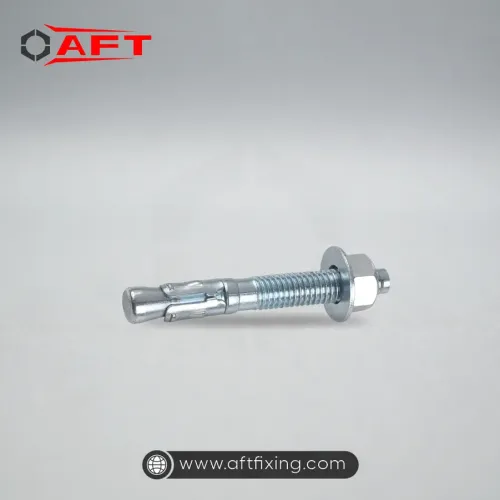

Heavy Duty Anchors Manufacturers in India
Heavy Duty Anchors
Read More

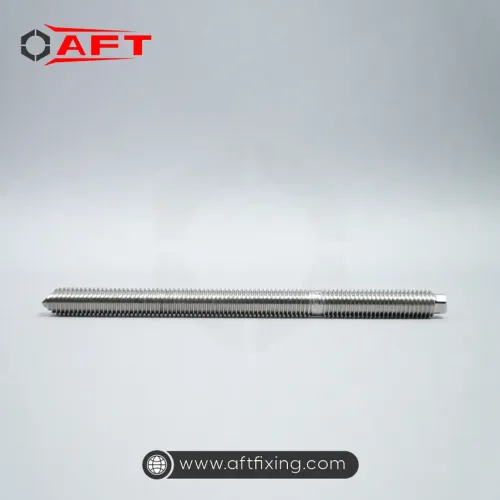

Base Plate Anchors Manufacturers in India
Base Plate Anchors
Read More

Proven Anchor Fastening Solutions in Major Construction & Infrastructure Projects

Central Vista
Central Vista

New Parliament Building

New Delhi
Statue of unity
Statue of unity

Kewadia

Gujarat
BJP Headquarters
BJP Headquarters

Ddu marg

New Delhi
Explore More

Frequently Asked Questions About Anchor Fasteners for Construction & Industrial Applications

Explore our FAQs to learn how our anchor fasteners, wedge anchors, sleeve anchors, and high-performance construction fasteners help build strong, long-lasting structures with precision and reliability.

Being based near Delhi (Sonipat, Haryana) gives us a logistics advantage for faster delivery across India. You can request a quote, select from our wide product range and tap into our technical & customer support at +91-7982633703 or info@aftfixing.com.
We provide a broad range of solutions including mechanical anchors, expansion bolts, structural anchors, sleeve anchors, bullet fasteners, concrete screws and more — designed for concrete, brick and block substrates
Our products are made with high-quality materials, engineered with precision manufacturing, and follow IS & DIN standards — giving you strength, reliability and long-term durability.
.We don’t just manufacture anchor fasteners — we build lasting partnerships. Our support extends beyond production, offering site-preparation guidance, on-site installation assistance, and tailored solutions designed to meet the unique needs of every project.

Our Trusted Industrial & Construction Partners

Know More
L&T
TATA PROJECTS
SHAPOORJI PALLONJI
GMP GROUP
HCC
AFCONS
JMC PROJECTS
GAMMON
JKUMAR INFRA
RELIANCE INFRA
PUNJ LLOYD
GODREJ PROP
DLF
ASHOKA BUILDCON
BL KASHYAP
ESSAR
IRCON
NCC
ACIL
ITD
OMAXE
SIMPLEX
CEIGALL
SMCC
SOBHA
PSP PROJECTS
SUROJ BUILDCON
URC CONSTRUCTION
AECOM
NBCC
RVNL
Quick Info

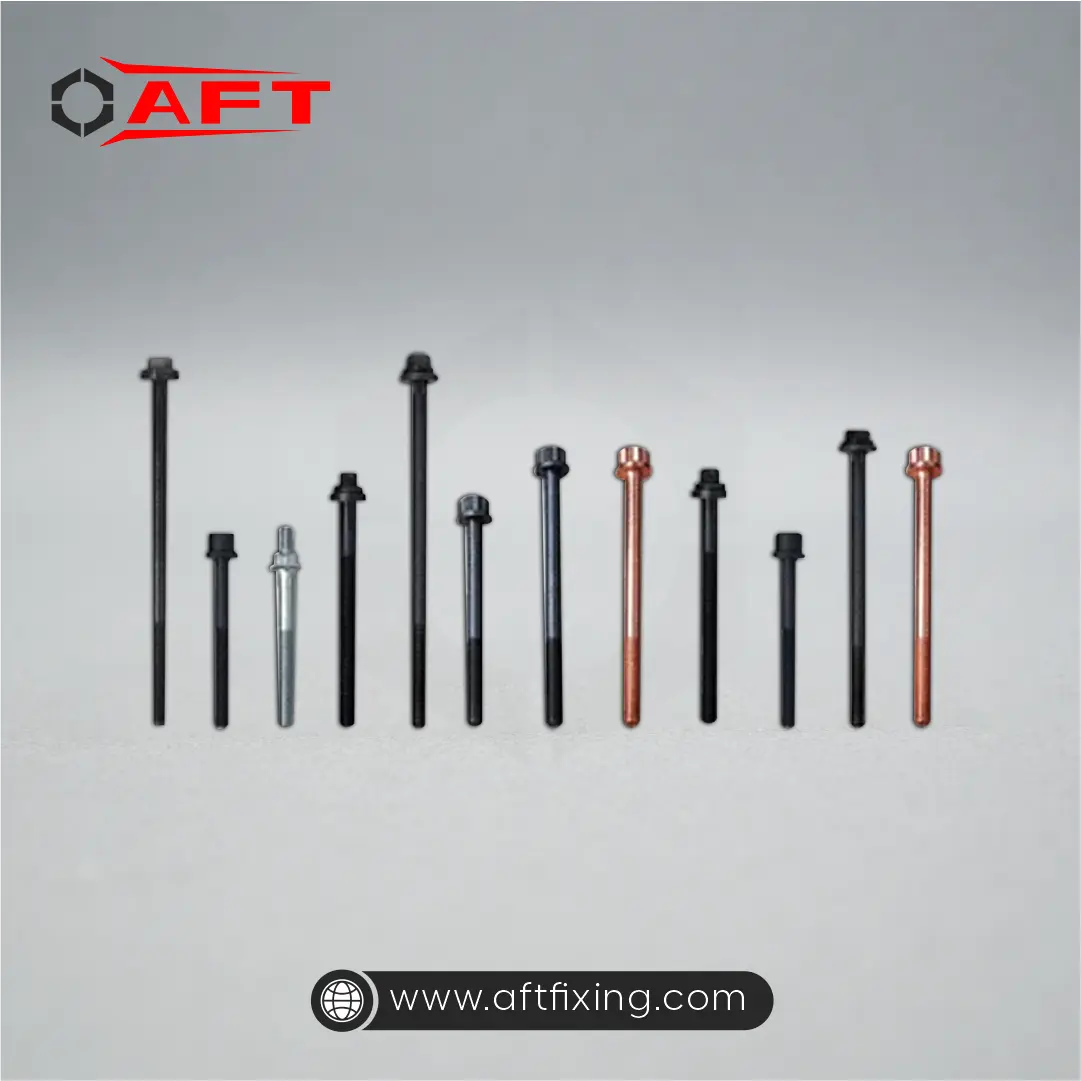

Engine Fasteners

Aft Fixings, a well-known Engine Fasteners Dealer in Delhi, is a supplier of fasteners in both high-performance and standard automotive engines.

Read More
Call Us
