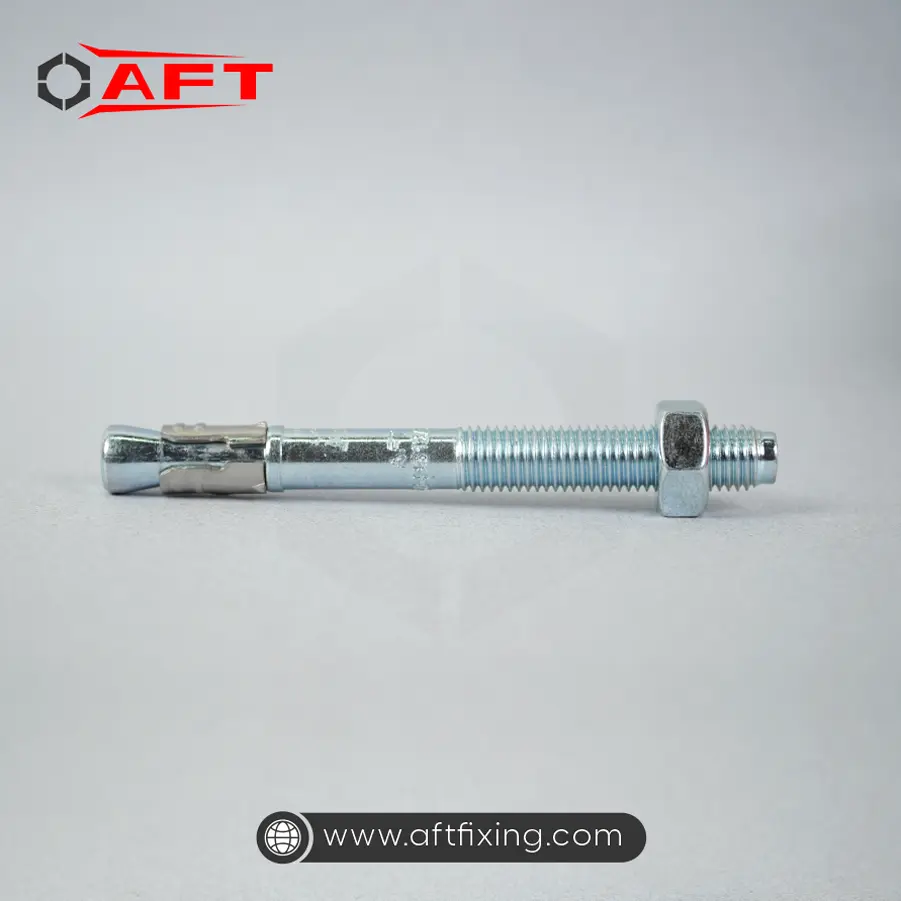

Mechanical Anchors

As one of the trusted Mechanical Anchors Manufacturers in India, we provide products suitable for projects of every scale. We are known for producing anchors with accuracy and strength. Our mechanical anchor fasteners are designed to handle pressure, corrosion, and vibration while making sure to secure mechanical anchor bolt installation. Contractors and industries in India trust us because our products guarantee both quality and durability.

Our anchors are designed for long-lasting performance. With a strong presence in the mechanical anchors market, we ensure that industries across the nation receive reliable fastening solutions at the best value. known for producing anchors with accuracy and strength. Our mechanical anchor fasteners are designed to handle pressure, corrosion, and vibration while making sure to secure mechanical anchor bolt installation. Contractors and industries in India trust us because our products guarantee both quality and durability.

What Are Mechanical Anchors and How Do They Work?

Mechanical anchors are devices that allow fastening to concrete or brick structures via the following types of mechanical anchors: expansion, thread-cutting, or self-cutting. Once installed correctly, all three types will allow the user to attach fixtures, structures, and/or machinery to either the base material or to another object, such as other pieces of equipment or fixtures, without damaging either of those surfaces.

Applications and Performance

Used for fixing components into concrete and masonry
Provide instant load-bearing strength
Work through expansion and mechanical grip
Suitable for structural and non-structural applications

Specification	Details
Product Name	Mechanical Anchors
Diameter	Starting from 6 mm
Material	High-Quality Carbon Steel with Zinc Plating (Corrosion Resistant)
Size Range	M6 – M20
Anchor Length	Standard 50 mm (custom lengths available on request)
Packaging	Available in bulk quantities as per project requirements
Brand	AFT (Anchorite Fixing Technology)

Mechanical Anchors Suppliers & Dealers in India – Performance Meets Affordability

We are recognized as one of the top Mechanical Anchors Suppliers & Dealers in India, providing mechanical anchoring solutions that have a combination of high strength, low cost, and long life. Our wide distribution ensures that projects across India get the right mechanical anchor fasteners without compromise. For builders and industries, we are the go-to source for safe and long-lasting connections.

Contractors and builders rely on us where performance and affordability come together. Our anchors are available in different mechanical anchor bolt sizes, making them suitable for railings, pipelines, and equipment installations. With expert support and competitive mechanical anchors price, we simplify the installation process while ensuring safety.

Mechanical Anchors Explained: Design, Installation, and Usage

All mechanical anchors utilize an expansion sleeve or conical nut together with a set of threaded nuts that fit over the expansion sleeve, allowing the installer to accurately obtain the desired anchor point on the concrete. In order to ensure the ultimate security and stability of the anchoring system, the mechanical anchors are designed to be installed with minimal or no damage to the base material.

Correct installation involves accurate drilling, proper hole cleaning, correct embedment depth, and controlled torque application. When installed properly, these anchors provide long-term reliability and safety for applications such as machinery mounting, steel structures, railings, support brackets, and other heavy-duty construction fixings.

Design and Installation Essentials

Designed with expansion sleeves and threaded elements
Require precise drilling and hole preparation
Correct torque ensures secure anchoring
Widely used for heavy-duty construction fixings

Mechanical Anchors Wholesalers in India – Serving Large Projects

As one of the Top Mechanical Anchors Wholesalers in India, we provide bulk supplies nationwide. Contractors, construction companies, and industries rely on us for mechanical anchors for rebar, tile, and concrete at unbeatable prices. With strong nationwide service, we ensure efficiency, consistency, and strength for every project.

Why Choose Our Mechanical Anchors?

Wide range of mechanical anchor bolt sizes
Affordable mechanical anchors price
Strong and easy mechanical anchor bolt installation
Presence in the mechanical anchors market across India
Trusted for mechanical anchors for concrete, tile, and rebar.

Mechanical Anchors: Key Features and Engineering Principles

Mechanical anchors offer high levels of strength, durability, and predictability, with immediate usability once put into place to reduce on-site time. Mechanical anchors are effective in both cracked and non-cracked concrete, and can accommodate both dynamic and static loads. Mechanical anchors distribute all forces evenly through a controlled method of expansion, thus ensuring an even transfer of forces into the surrounding concrete and significantly reducing the probability of loosening or failure due to the introduction of lateral or other forces over time.

Strength and Engineering Highlights

High load capacity and durability
Immediate strength after installation
Effective in cracked and non-cracked concrete
Engineering based on expansion and friction principles

Get Your Mechanical Anchors Today from AFT

Our Products Range

AHS-HCR

ACS-R

ACS-HS

ACS-SR

AHS-AS

AHS-SR

ACS-H

ATH-R

ATH-SR

Product :

Concrete Stud Anchor

Class :

Standard

Material Grade :

Carbon Steel, Zinc Plated

Description

Torque-controlled mechanical stud anchor for reliable static load transfer in concrete and dense substrates.

Key Features

Cold-formed body; predictable torque setting; consistent radial expansion; quick through-fix installation; cost-effective solution.

Applications

• Canopy structures & sunshade frames

• Signage frames & advertising hoardings

• Industrial racking systems

• Safety barriers & crash barriers

• Seismic restraint connections for services

• Staircase stringer supports

• Retrofits and strengthening works

Code	Art No.	Anchor Dia mm	Anchor Length mm	Drill Hole Dia mm	Minima Embed Length Hnom1 mm	Maxima Embed Length Hnom2 mm	Maxima T.Fix Hnom1 / Hnom2 mm	Minima Drill Hole Depth Hnom1 / Hnom2 mm	Std. Thread Length mm	Nut Dia (SW) mm	Recommended Torque Nm	Recommended Safe Working Load (Uncracked Concrete C20/25) Tensile (kN) / Shear (kN)	Safe Distance Between Anchors mm	Safe Edge Distance mm
ACS-H-08075	2017111	8	75	8	40	50	20 / 10	45 / 55	35	13	15	5.1 / 5.2	60	60
ACS-H-10090	2017122	10	90	10	50	60	25 / 15	60 / 70	40	17	30	7.2 / 8.8	70	70
ACS-H-10100	2017123	10	100	10	50	60	35 / 25	60 / 70	45	17	30	7.2 / 8.8	70	70
ACS-H-12100	2017136	12	100	12	60	75	20 / 5	70 / 85	35	19	50	10.2 / 13.9	80	90
ACS-H-12110	2017144	12	110	12	60	75	30 / 15	70 / 85	45	19	50	10.2 / 13.9	80	90
ACS-H-12120	2017137	12	120	12	60	75	40 / 25	70 / 85	55	19	50	10.2 / 13.9	80	90
ACS-H-12150	2017139	12	150	12	60	75	70 / 55	70 / 85	85	19	50	10.2 / 13.9	80	90
ACS-H-16120	2017151	16	120	16	80	95	15 / --	90 / 105	65	24	100	15.5 / 26.0	110	110
ACS-H-16140	2017152	16	140	16	80	95	35 / 20	90 / 105	75	24	100	15.5 / 26.0	110	110

NOTE :

*All load tolerances can be achieved in accordance with the specified dimensions mentioned above.
*Any modifications to the product portfolio can be implemented without prior notification to the stakeholders.
*Special lengths can be provided upon request, subject to a minimum order quantity requirement.
*KN= Kilonewton (1KN = 100Kgs.)

Product :

Concrete Stud Anchor

Class :

Premium

Material Grade :

Stainless Steel 304

Description

Corrosion-resistant stud anchor for medium-load exterior and wet-area concrete fixings.

Key Features

Torque-controlled expansion; SS304 corrosion resistance; cold-forged threads; stable long-term performance; suitable for semi-exposed zones.

Applications

• Canopy structures & sunshade frames

• Signage frames & advertising hoardings

• Industrial racking systems

• Safety barriers & crash barriers

• Seismic restraint connections for services

• Staircase stringer supports

• Retrofits and strengthening works

CODE	ART NO.	ANCHOR DIA mm	ANCHOR LENGTH mm	DRILL HOLE DIA mm	MINIMUM EMBED LENGTH (Hnom1) mm	MAXIMUM EMBED LENGTH (Hnom2) mm	MAXIMUM T.FIX Hnom1 / Hnom2 mm	MINIMUM DRILL HOLE DEPTH Hnom1 / Hnom2 mm	STD. THREAD LENGTH mm	NUT DIA (SW) mm	RECOMMENDED TORQUE Nm	RECOMMENDED SAFE WORKING LOAD (Uncracked Concrete C20/25) Tensile / Shear (kN)	SAFE DISTANCE BETWEEN ANCHORS mm	SAFE EDGE DISTANCE mm
ACS-R-08075	2017311	8	75	8	40	50	20 / 10	45 / 55	35	13	15	5.1 / 5.2	60	60
ACS-R-10090	2017321	10	90	10	50	60	20 / 15	60 / 70	40	17	30	7.2 / 9.2	70	70
ACS-R-10100	2017322	10	100	10	50	60	30 / 25	60 / 70	50	17	30	7.2 / 9.2	70	70
ACS-R-10130	2017323	10	130	10	60	90	50 / 20	70 / 100	65	17	30	7.2 / 9.2	70	70
ACS-R-12100	2017335	12	100	12	60	75	15 / 5	70 / 85	35	19	50	10.2 / 13.3	80	90
ACS-R-12120	2017336	12	120	12	60	75	35 / 25	70 / 85	55	19	50	10.2 / 13.3	80	90
ACS-R-12130	2017337	12	130	12	70	90	40 / 10	80 / 100	65	19	50	10.2 / 13.3	80	90
ACS-R-12150	2017338	12	150	12	60	75	65 / 55	70 / 85	85	19	50	10.2 / 13.3	80	90
ACS-R-16140	2017353	16	140	16	80	95	35 / 20	90 / 105	75	24	100	13.7 / 24.9	110	110

Product :

High Strength Stud Anchor

Class :

Premium

Material Grade :

Carbon Steel, Zinc Plated

Description

High-load stud anchor for demanding structural connections in concrete.

Key Features

Higher tensile capacity; optimized expansion cone; controlled torque installation; cold-formed threads; reliable load transfer.

Applications

• Canopy structures & sunshade frames

• Signage frames & advertising hoardings

• Industrial racking systems

• Safety barriers & crash barriers

• Seismic restraint connections for services

• Staircase stringer supports

• Retrofits and strengthening works

Code	Art No.	Anchor Dia mm	Anchor Length mm	Drill Hole Dia mm	Min Embed Length Hnom1 (mm)	Max Embed Length Hnom2 (mm)	Max T.Fix Hnom1 / Hnom2 (mm)	Min Drill Hole Depth Hnom1 / Hnom2 (mm)	Std. Thread Length mm	Nut Dia (SW) mm	Recommended Torque Nm	Safe Working Load (C20/25) Tensile / Shear (kN)	Safe Distance Between Anchors mm	Safe Edge Distance mm
ACS-HS-06050	2017260	6	50	6	30	35	5 / -	35 / 40	20	10	5	3.0 / 3.8	35	35
ACS-HS-06065	2017261	6	65	6	35	40	10 / 5	40 / 45	30	10	5	3.8 / 3.9	35	35
ACS-HS-06085	2017262	6	85	6	50	60	15 / 5	55 / 65	35	10	5	4.5 / 3.9	35	35
ACS-HS-06100	2017263	6	100	6	55	65	25 / 15	60 / 70	45	10	5	4.5 / 3.9	35	35
ACS-HS-08060	2017201	8	60	8	40	-	5 / -	45 / -	25	13	15	6.5 / 6.5	35	35
ACS-HS-08075	2017202	8	75	8	40	50	15 / 5	45 / 55	40	13	15	6.5 / 6.5	35	35
ACS-HS-08095	2017203	8	95	8	50	70	25 / 5	55 / 75	45	13	15	7.8 / 6.5	35	35
ACS-HS-08115	2017204	8	115	8	50	80	45 / 15	55 / 85	55	13	15	7.8 / 6.5	35	35
ACS-HS-10075	2017211	10	75	10	50	55	5 / -	60 / 65	40	17	25	9.2 / 10.5	50	50
ACS-HS-10095	2017212	10	95	10	50	60	25 / 15	60 / 70	45	17	25	9.2 / 10.5	50	50
ACS-HS-10115	2017213	10	115	10	50	90	45 / 5	60 / 100	55	17	25	9.2 / 10.5	50	45
ACS-HS-10130	2017215	10	130	10	60	90	50 / 20	70 / 100	65	17	25	10.3 / 10.8	50	40
ACS-HS-10150	2017216	10	150	10	70	90	60 / 40	80 / 100	80	17	25	11.5 / 11.0	50	40
ACS-HS-10170	2017217	10	170	10	70	90	80 / 60	80 / 100	95	17	25	11.5 / 11.0	50	40
ACS-HS-12095	2017225	12	95	12	65	75	10 / -	75 / 85	35	19	50	12.8 / 17.0	75	65
ACS-HS-12115	2017226	12	115	12	65	80	30 / 15	75 / 85	55	19	50	12.8 / 17.0	75	65
ACS-HS-12130	2017228	12	130	12	70	100	40 / 10	80 / 85	65	19	50	12.8 / 17.0	75	65
ACS-HS-12150	2017229	12	150	12	70	100	60 / 25	80 / 110	80	19	50	12.8 / 17.0	75	65
ACS-HS-12175	2017230	12	175	12	90	100	65 / 55	100 / 110	90	19	50	16.8 / 16.9	75	65
ACS-HS-12205	2017231	12	205	12	90	100	90 / 80	100 / 110	95	19	50	16.8 / 16.9	75	65
ACS-HS-12225	2017232	12	225	12	90	100	110 / 100	100 / 110	100	19	50	16.8 / 16.9	75	65
ACS-HS-16105	2017241	16	105	16	75	-	10 / -	85 / -	50	24	80	17.5 / 29.7	90	80
ACS-HS-16125	2017242	16	125	16	75	90	25 / 10	85 / 100	60	24	80	17.5 / 29.7	90	80
ACS-HS-16145	2017243	16	145	16	75	100	45 / 25	85 / 110	75	24	80	17.5 / 29.7	90	80
ACS-HS-16180	2017245	16	180	16	100	135	60 / 20	110 / 145	90	24	80	23.5 / 29.8	90	80
ACS-HS-16235	2017246	16	235	16	100	135	100 / 75	110 / 145	95	24	80	23.5 / 29.8	90	80
ACS-HS-20130	2017255	20	130	20	90	100	15 / 10	100 / 110	65	30	200	30.0 / 49.5	175	120
ACS-HS-20170	2017256	20	170	20	90	130	60 / 20	100 / 140	80	30	200	30.0 / 49.5	175	120

NOTE :

Product :

High Strength Stud Anchor

Class :

Elite

Material Grade :

Stainless Steel 316

Description

High-load stud anchor for aggressive and coastal environments requiring corrosion resistance.

Key Features

High static & dynamic capacity; SS316 marine-grade durability; stable expansion geometry; long service life; suitable for harsh outdoor zones.

Applications

• Façade support brackets & façade sub-frame fixings

• Structural steel base plates

• Handrails, guardrails, balustrades

• Equipment foundations & machine base frames

• MEP supports: HVAC units, AHU frames, cable trays, pipe racks

Code	Art No.	Anchor Dia mm	Anchor Length mm	Drill Hole Dia mm	Min Embed Length Hnom1 (mm)	Max Embed Length Hnom2 (mm)	Max T.Fix Hnom1 / Hnom2 (mm)	Min Drill Hole Depth Hnom1 / Hnom2 (mm)	Std. Thread Length mm	Nut Dia (SW) mm	Recommended Torque Nm	Safe Working Load (C20/25) Tensile / Shear (kN)	Safe Distance Between Anchors mm	Safe Edge Distance mm
ACS-SR-06050	2017470	6	50	6	30	35	5 / -	35 / 40	20	10	5	3.0 / 4.2	35	35
ACS-SR-06065	2017471	6	65	6	35	40	10 / 5	40 / 45	30	10	5	3.8 / 4.2	35	35
ACS-SR-06085	2017472	6	85	6	50	60	15 / 5	55 / 65	35	10	5	4.5 / 4.2	35	35
ACS-SR-06100	2017473	6	100	6	55	65	25 / 15	60 / 70	45	10	5	4.5 / 4.2	35	35
ACS-SR-08060	2017410	8	60	8	40	-	5 / -	45 / -	25	13	15	6.5 / 7.0	35	35
ACS-SR-08075	2017411	8	75	8	40	50	15 / 5	45 / 55	40	13	15	6.5 / 7.0	35	35
ACS-SR-08095	2017412	8	95	8	50	70	25 / 5	55 / 75	45	13	15	7.8 / 7.0	35	35
ACS-SR-08115	2017413	8	115	8	50	80	45 / 15	55 / 85	55	13	15	7.8 / 7.0	35	35
ACS-SR-10075	2017420	10	75	10	50	55	5 / -	60 / 65	40	17	25	9.2 / 13.1	50	50
ACS-SR-10095	2017421	10	95	10	50	60	25 / 15	60 / 70	45	17	25	9.2 / 13.1	50	50
ACS-SR-10115	2017422	10	115	10	50	90	45 / 5	60 / 100	55	17	25	9.2 / 13.1	50	45
ACS-SR-10130	2017423	10	130	10	60	90	50 / 20	70 / 100	65	17	25	10.3 / 13.1	50	40
ACS-SR-10150	2017424	10	150	10	70	90	60 / 40	80 / 100	80	17	25	11.5 / 13.1	50	40
ACS-SR-10170	2017425	10	170	10	70	90	80 / 60	80 / 100	95	17	25	11.5 / 13.1	50	40
ACS-SR-12095	2017430	12	95	12	65	75	10 / -	75 / 85	35	19	50	12.8 / 17.0	75	65
ACS-SR-12115	2017431	12	115	12	65	80	30 / 15	75 / 85	55	19	50	12.8 / 17.0	75	65
ACS-SR-12130	2017432	12	130	12	70	100	40 / 10	80 / 85	65	19	50	12.8 / 17.0	75	65
ACS-SR-12150	2017433	12	150	12	70	100	60 / 25	80 / 110	80	19	50	12.8 / 17.0	75	65
ACS-SR-12175	2017434	12	175	12	90	100	65 / 55	100 / 110	90	19	50	16.8 / 16.9	75	65
ACS-SR-12205	2017435	12	205	12	90	100	90 / 80	100 / 110	95	19	50	16.8 / 16.9	75	65
ACS-SR-12225	2017435	12	225	12	90	100	110 / 100	100 / 110	100	19	50	16.8 / 16.9	75	65
ACS-SR-16105	2017440	16	105	16	75	-	10 / -	85 / -	50	24	80	17.5 / 32.5	90	80
ACS-SR-16125	2017441	16	125	16	75	90	25 / 10	85 / 100	60	24	80	17.5 / 32.5	90	80
ACS-SR-16145	2017442	16	145	16	75	100	45 / 25	85 / 110	75	24	80	17.5 / 32.5	90	80
ACS-SR-16180	2017443	16	180	16	100	135	60 / 20	110 / 145	90	24	80	23.5 / 32.5

Product :

Ultimate Strength Stud Anchor

Class :

Elite

Material Grade :

Alloy Steel, Zinc Plated

Description

Ultra high-load mechanical anchor for critical structural and safety-related fixings.

Key Features

High-tensile alloy steel core; robust expansion clip; deep embedment for high loads; vibration-resistant design; suitable for heavy machinery bases.

Applications

• Façade support brackets & façade sub-frame fixings

• Structural steel base plates

• Handrails, guardrails, balustrades

• Equipment foundations & machine base frames

• MEP supports: HVAC units, AHU frames, cable trays, pipe racks

Code	Art No.	Anchor Dia mm	Anchor Length mm	Drill Hole Dia mm	Min Embed Length Hnom1 (mm)	Max Embed Length Hnom2 (mm)	Max T.Fix Hnom1 / Hnom2 (mm)	Min Drill Hole Depth Hnom1 / Hnom2 (mm)	Std. Thread Length mm	Nut Dia (AF/SW) mm	Recommended Torque Nm	Safe Working Load (Uncracked C20/25) Tensile / Shear (kN)	Safe Working Load (Cracked C20/25) Tensile / Shear (kN)	Safe Distance Between Anchors mm	Safe Edge Distance mm
AHS-AS-08075	2017511	8	75	8	50	55	15 / 10	55 / 60	40	13	20	7.0 / 8.0	4.0 / 8.0	35	40
AHS-AS-08095	2017512	8	95	8	50	55	30 / 25	55 / 60	45	13	20	7.0 / 8.0	4.0 / 8.0	35	40
AHS-AS-08115	2017513	8	115	8	55	100	50 / 5	60 / 105	60	13	20	7.0 / 8.0	4.0 / 8.0	35	40
AHS-AS-10090	2017520	10	90	10	50	70	25 / 10	60 / 80	45	17	45	11.0 / 13.5	7.5 / 13.5	50	45
AHS-AS-10100	2017521	10	100	10	50	70	35 / 20	60 / 80	50	17	45	11.0 / 13.5	7.5 / 13.5	50	45
AHS-AS-10120	2017522	10	120	10	50	70	50 / 30	60 / 80	60	17	45	11.0 / 13.5	7.5 / 13.5	50	45
AHS-AS-10130	2017523	10	130	10	50	100	60 / 10	60 / 110	70	17	45	11.0 / 13.5	7.5 / 13.5	50	45
AHS-AS-10150	2017524	10	150	10	50	100	80 / 30	60 / 110	80	17	45	11.0 / 13.5	7.5 / 13.5	50	45
AHS-AS-10200	2017525	10	200	10	50	100	130 / 80	60 / 110	100	17	45	11.0 / 13.5	7.5 / 13.5	50	45
AHS-AS-12100	2017535	12	100	12	60	75	20 / 5	70 / 85	50	19	60	13.5 / 19.5	9.5 / 19.5	60	55
AHS-AS-12120	2017536	12	120	12	60	80	35 / 20	70 / 90	60	19	60	13.5 / 19.5	9.5 / 19.5	60	55
AHS-AS-12130	2017537	12	130	12	60	80	45 / 25	70 / 90	70	19	60	13.5 / 19.5	9.5 / 19.5	60	55
AHS-AS-12150	2017538	12	150	12	60	80	65 / 30	70 / 90	80	19	60	13.5 / 19.5	9.5 / 19.5	60	55
AHS-AS-12170	2017539	12	170	12	60	135	90 / 15	70 / 145	90	19	60	13.5 / 19.5	9.5 / 19.5	60	55
AHS-AS-12230	2017540	12	230	12	60	135	150 / 75	70 / 145	95	19	60	13.5 / 19.5	9.5 / 19.5	60	55
AHS-AS-12260	2017541	12	260	12	60	135	180 / 100	70 / 145	100	19	60	13.5 / 19.5	9.5 / 19.5	60	55
AHS-AS-12300	2017542	12	300	12	60	135	220 / 140	70 / 145	100	19	60	13.5 / 19.5	9.5 / 19.5	60	55
AHS-AS-16150	2017550	16	150	16	80	100	50 / 30	90 / 110	80	24	110	18.5 / 33.0	13.0 / 33.0	80	75
AHS-AS-16170	2017551	16	170	16	80	100	70 / 50	90 / 110	90	24	110	18.5 / 33.0	13.0 / 33.0	80	75
AHS-AS-16220	2017552	16	220	16	80	175	120 / 25	90 / 185	95	24	110	18.5 / 33.0	13.0 / 33.0	80	75
AHS-AS-16260	2017553	16	260	16	80	175	150 / 90	90 / 185	100	24	110	18.5 / 32.0	13.0 / 33.0	80	75
AHS-AS-16300	2017554	16	300	16	80	175	200 / 80	90 / 185	100	24	110	18.5 / 32.0	13.0 / 33.0	80	75
AHS-AS-20170	2017560	20	170	20	120	120	30 / 30	130 / 130	85	30	240	32.0 / 53.5	17.0 / 48.5	120	110
AHS-AS-20200	2017561	20	200	20	120	120	60 / 60	130 / 130	90	30	240	32.0 / 53.5	17.0 / 48.5	120	110
AHS-AS-20260	2017562	20	260	20	120	200	120 / 40	130 / 130	100	30	240	32.0 / 53.5	17.0 / 48.5	120	110
AHS-AS-24200	2017570	24	200	24	150	150	30 / 30	160 / 160	90	36	300	33.5 / 55.0	19.0 / 50.0	180	170
AHS-AS-24230	2017571	24	230	24	150	170	60 / 40	160 / 180	95	36	300	33.5 / 55.0	19.0 / 50.0	180	170

Product :

Ultimate Strength Stud Anchor

Class :

Elite

Material Grade :

Stainless Steel 316

Description

Ultimate-strength stud anchor with premium corrosion resistance for severe environments.

Key Features

SS316 stainless steel; extreme load class; long service life; stable torque- controlled expansion; suitable for coastal & industrial zones.

Applications

• Façade support brackets & façade sub-frame fixings

• Structural steel base plates

• Handrails, guardrails, balustrades

• Equipment foundations & machine base frames

• MEP supports: HVAC units, AHU frames, cable trays, pipe racks

Code	Art No.	Anchor Dia mm	Anchor Length mm	Drill Hole Dia mm	Min Embed Length Hnom1 (mm)	Max Embed Length Hnom2 (mm)	Max T.Fix Hnom1 / Hnom2 (mm)	Min Drill Hole Depth Hnom1 / Hnom2 (mm)	Std. Thread Length mm	Nut Dia (AF/SW) mm	Recommended Torque Nm	Safe Working Load (Uncracked C20/25) Tensile / Shear (kN)	Safe Working Load (Cracked C20/25) Tensile / Shear (kN)	Safe Distance Between Anchors mm	Safe Edge Distance mm
AHS-SR-08075	2017616	8	75	8	50	55	15 / 10	55 / 60	40	13	20	8.0 / 9.0	4.5 / 8.5	35	40
AHS-SR-08095	2017617	8	95	8	50	55	30 / 25	55 / 60	45	13	20	8.0 / 9.0	4.5 / 8.5	35	40
AHS-SR-08115	2017618	8	115	8	55	100	50 / 5	60 / 105	60	13	20	8.0 / 9.0	4.5 / 8.5	35	40
AHS-SR-10090	2017625	10	90	10	50	70	25 / 10	60 / 80	45	17	45	12.0 / 14.5	8.0 / 14.0	50	45
AHS-SR-10100	2017626	10	100	10	50	70	35 / 20	60 / 80	50	17	45	12.0 / 14.5	8.0 / 14.0	50	45
AHS-SR-10120	2017627	10	120	10	50	70	50 / 30	60 / 80	60	17	45	12.0 / 14.5	8.0 / 14.0	50	45
AHS-SR-10130	2017628	10	130	10	50	100	60 / 10	60 / 110	70	17	45	12.0 / 14.5	8.0 / 14.0	50	45
AHS-SR-10150	2017629	10	150	10	50	100	80 / 30	60 / 110	80	17	45	12.0 / 14.5	8.0 / 14.0	50	45
AHS-SR-12100	2017635	12	100	12	60	75	20 / 5	70 / 85	50	19	60	14.0 / 21.5	10.0 / 21.0	60	55
AHS-SR-12120	2017636	12	120	12	60	80	35 / 20	70 / 90	60	19	60	14.0 / 21.5	10.0 / 21.0	60	55
AHS-SR-12130	2017637	12	130	12	60	80	45 / 25	70 / 90	70	19	60	14.0 / 21.5	10.0 / 21.0	60	55
AHS-SR-12150	2017638	12	150	12	60	80	65 / 30	70 / 90	80	19	60	14.0 / 21.5	10.0 / 21.0	60	55
AHS-SR-12170	2017639	12	170	12	60	135	90 / 15	70 / 145	90	19	60	14.0 / 21.5	10.0 / 21.0	60	55
AHS-SR-12230	2017640	12	230	12	60	135	150 / 75	70 / 145	95	19	60	14.0 / 21.5	10.0 / 21.0	60	55
AHS-SR-16150	2017653	16	150	16	80	100	50 / 30	90 / 110	80	24	110	19.5 / 37.0	13.5 / 36.5	80	75
AHS-SR-16170	2017654	16	170	16	80	100	70 / 50	90 / 110	90	24	110	19.5 / 37.0	13.5 / 36.5	80	75
AHS-SR-16220	2017655	16	220	16	80	175	120 / 25	90 / 185	95	24	110	19.5 / 37.0	13.5 / 36.5	80	75
AHS-SR-16260	2017656	16	260	16	80	175	150 / 90	90 / 185	100	24	110	19.5 / 37.0	13.5 / 36.5	80	75
AHS-SR-20170	2017661	20	170	20	120	120	30 / 30	130 / 130	85	30	240	33.0 / 55.5	17.5 / 53.5	120	110
AHS-SR-20200	2017662	20	200	20	120	120	60 / 60	130 / 130	90	30	240	33.0 / 55.5	17.5 / 53.5	120	110
AHS-SR-24200	2017665	24	200	24	150	150	30 / 30	160 / 160	90	36	300	34.0 / 64.0	19.5 / 57.5	180	170
AHS-SR-24230	2017666	24	230	24	150	170	60 / 40	160 / 180	95	36	300	34.0 / 64.0	19.5 / 57.5	180	170

Product :

High Corrosion Resistant Stud Anchor

Class :

Elite

Material Grade :

HCR Coated / SS Grade

Description

High corrosion resistant stud anchor for aggressive industrial and marine environments.

Key Features

Enhanced corrosion protection; long service life; high mechanical load capacity; suitable for chemical exposure zones; reduced maintenance lifecycle cost.

Applications

• Façade support brackets & façade sub-frame fixings

• Structural steel base plates

• Handrails, guardrails, balustrades

• Equipment foundations & machine base frames

• MEP supports: HVAC units, AHU frames, cable trays, pipe racks

Code	Art No.	Anchor Dia mm	Anchor Length mm	Drill Hole Dia mm	Min Embed Length Hnom1 (mm)	Max Embed Length Hnom2 (mm)	Max T.Fix Hnom1 / Hnom2 (mm)	Min Drill Hole Depth Hnom1 / Hnom2 (mm)	Std. Thread Length mm	Nut Dia (SW) mm	Recommended Torque Nm	Safe Working Load (Uncracked/Cracked C20/25) Tensile / Shear (kN)	Safe Distance Between Anchors mm	Safe Edge Distance mm
AHS-HCR-08100	2017710	8	100	8	50	70	35 / 10	60 / 80	50	13	20	7.5 / 8.5	60	60
AHS-HCR-10130	2017720	10	130	10	60	80	60 / 30	70 / 90	60	17	40	11.5 / 13.8	70	70
AHS-HCR-12150	2017130	12	150	12	70	100	65 / 30	80 / 110	70	19	60	13.7 / 20.0	70	70
AHS-HCR-16150	2017140	16	150	16	80	110	50 / 20	90 / 120	75	24	80	19.0 / 34.0	80	90

Product :

Tam Anchor

Material Grade :

Stainless Steel 304

Description

Medium-duty expansion anchor for concrete and masonry.

Key Features

Uniform expansion; easy setting; corrosion resistance.

Applications

HVAC brackets, rails

CODE	ART. NO.	BOLT DIA mm	ANCHOR LENGTH mm	DRILL HOLE Ø mm	T FIX MAX. mm	EFFECTIVE EMBEDDED DEPTH mm	MIN. DRILL HOLE DEPTH mm	RECOMMENDED LOAD kN UNCRACKED CONCRETE C20/25		DISTANCE BETWEEN ANCHORS mm
CODE	ART. NO.	BOLT DIA mm	ANCHOR LENGTH mm	DRILL HOLE Ø mm	T FIX MAX. mm	EFFECTIVE EMBEDDED DEPTH mm	MIN. DRILL HOLE DEPTH mm	TENSILE	SHEAR	DISTANCE BETWEEN ANCHORS mm
ATH-R-06050	3428811	6	50	10	5	35	65	3.0	3.3	80
ATH-R-06075	3428812	6	75	10	30	35	90	3.0	3.3	80
ATH-R-08060	3428813	8	60	12	5	40	75	4.0	4.5	90
ATH-R-08080	3428814	8	80	12	25	40	95	4.0	4.5	90
ATH-R-10070	3428815	10	70	14	5	50	90	6.5	7.5	110
ATH-R-10090	3428816	10	90	14	25	50	110	6.5	7.5	110
ATH-R-12080	3428817	12	80	16	5	60	100	8.0	9.0	140
ATH-R-12100	3428818	12	100	16	25	60	120	8.0	9.0	140

Product :

Tam Anchor

Material Grade :

Stainless Steel 316

Description

Premium corrosion-resistant tam anchor for exterior use.

Key Features

SS316; stable expansion; durable in wet zones.

Applications

Exterior fixtures

CODE	ART. NO.	BOLT DIA mm	ANCHOR LENGTH mm	DRILL HOLE Ø mm	T FIX MAX. mm	EFFECTIVE EMBEDDED DEPTH mm	MIN. DRILL HOLE DEPTH mm	RECOMMENDED LOAD kN UNCRACKED CONCRETE C20/25		DISTANCE BETWEEN ANCHORS mm
CODE	ART. NO.	BOLT DIA mm	ANCHOR LENGTH mm	DRILL HOLE Ø mm	T FIX MAX. mm	EFFECTIVE EMBEDDED DEPTH mm	MIN. DRILL HOLE DEPTH mm	TENSILE	SHEAR	DISTANCE BETWEEN ANCHORS mm
ATH-SR-06050	3428911	6	50	10	5	35	65	3.3	3.8	80
ATH-SR-06075	3428912	6	75	10	30	35	90	3.3	3.8	80
ATH-SR-08060	3428913	8	60	12	5	40	75	4.3	4.8	90
ATH-SR-08080	3428914	8	80	12	25	40	95	4.3	4.8	90
ATH-SR-10070	3428915	10	70	14	5	50	90	6.8	7.8	110
ATH-SR-10090	3428916	10	90	14	25	50	110	6.8	7.8	110
ATH-SR-12080	3428917	12	80	16	5	60	100	8.2	9.3	140
ATH-SR-12100	3428918	12	100	16	25	60	120	8.2	9.3	140

Frequently Asked Questions About Anchor Fasteners for Construction & Industrial Applications

Explore our FAQs to learn how our anchor fasteners, wedge anchors, sleeve anchors, and high-performance construction fasteners help build strong, long-lasting structures with precision and reliability.

Being based near Delhi (Sonipat, Haryana) gives us a logistics advantage for faster delivery across India. You can request a quote, select from our wide product range and tap into our technical & customer support at +91-7982633703 or info@aftfixing.com.

We provide a broad range of solutions including mechanical anchors, expansion bolts, structural anchors, sleeve anchors, bullet fasteners, concrete screws and more — designed for concrete, brick and block substrates

Our products are made with high-quality materials, engineered with precision manufacturing, and follow IS & DIN standards — giving you strength, reliability and long-term durability.

.We don’t just manufacture anchor fasteners — we build lasting partnerships. Our support extends beyond production, offering site-preparation guidance, on-site installation assistance, and tailored solutions designed to meet the unique needs of every project.
